Varžtų kaitintuvas IDEAL INDUCTOR 1.5, 230V, IGBT

Trumpai apie prekę

Prekė: Varžtų kaitintuvas IDEAL INDUCTOR 1.5, 230V, IGBT. Kategorija: Oro šildytuvai.

• Gamintojas: IDEAL
• Modelis: PODGRZEWACZ IDEAL INDUKTOR

IDEAL INDUCTOR 1.5 is designed for fast, very efficient and safe heating of metal parts. The INDUCTOR 1.5 device perfectly replaces the standard methods of heating with combustible gases (propane-butane-oxygen, acetylene-oxygen) in workshops, repair shops, automotive plants and wherever it is required to heat screw connections, sleeves, bearings, hubs in order to their disassembly, etc. It is used wherever there is a need for quick use and there is a risk of damage to the heated place by a flame, e.g. upholstery, varnish, rubber hoses, electric wires, etc. INDUCTOR 1.5 uses a modern , efficient and effective method of heating details, instruments before hardening, for defrosting, etc.

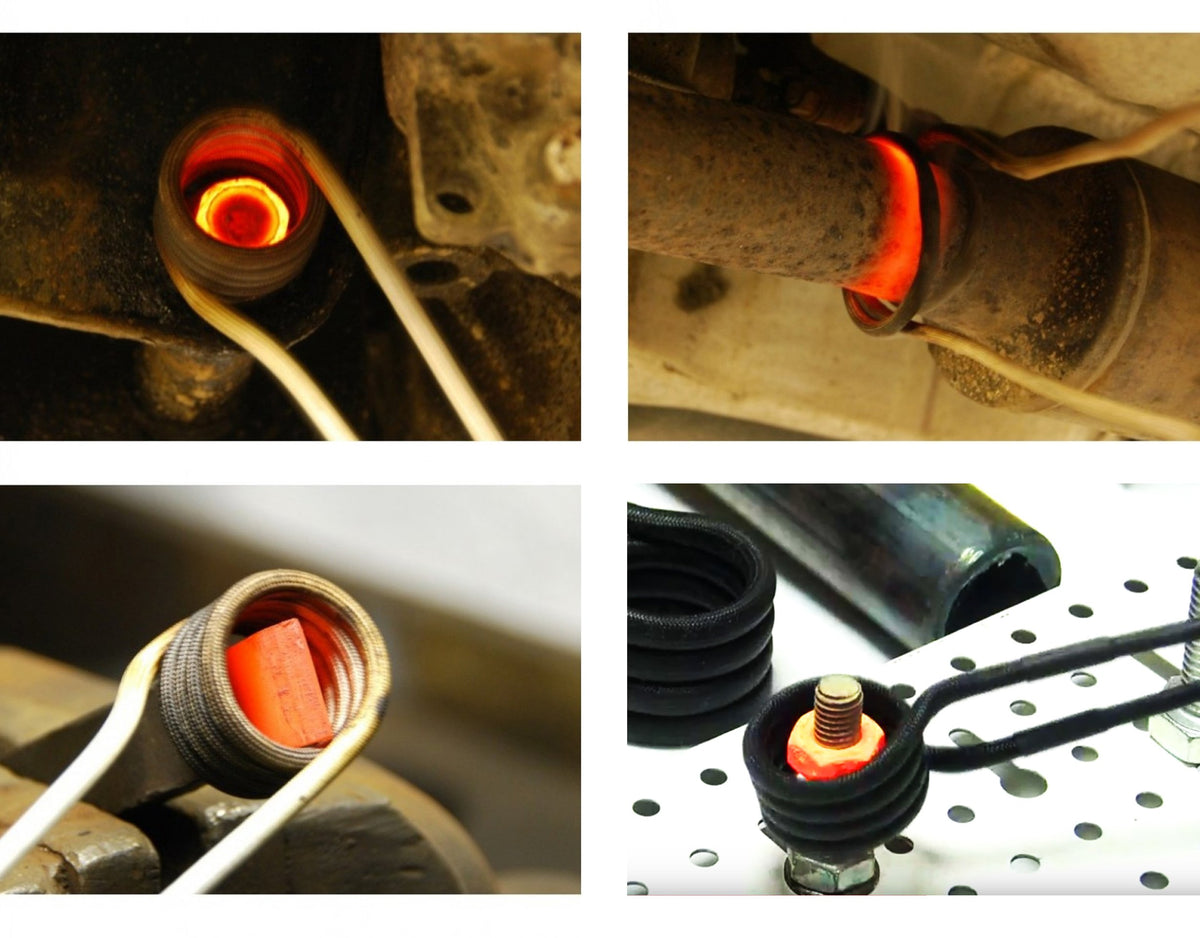

INDUCTOR 1.5 is able to heat an M20 bolt or nut to 800°C in 15 seconds . Preparation for use is generally faster than preparation for the heating process using burners with combustible gases. The induction heating process starts after connecting the heater to the 230 V socket, placing or bringing the inductor coil closer to the heated detail and pressing the button. The heat-treated detail is heated very quickly, according to individual requirements, even to "red". The white LED illuminates the heated place at the same time, making it easier for the staff to work in dark and hard-to-reach places. Induction coils are easily replaceable and come in many sizes and types, ranging from round coils with a fixed diameter, flat coils to sheet metal and flexible coils with which we can wrap a detail of any surface. For induction heating, you can additionally order a set of coils with different diameters, which are not included in the standard equipment with the device.

ADVANTAGES OF THE HEATER

• Even, fast and stable heating of details. The surface of the heated detail is only in the place required for heat treatment and is under full control of the place where the influence of temperature is required.
• High work safety (no combustible gases) and better working conditions for the staff. The operator is not exposed to open flames, hot gases and the risk of fire and explosion when using open flames.
• Lower staff training costs , lower payroll costs. There is no need for periodic employee training, which is required in the case of work with gases.
• Low purchase and operating costs. No costs related to the purchase of technical gases and cylinder rental.
• High energy efficiency.
• Possibility of heating details up to 800°C and above.

• Reliable IGBT technology
• Easy operation and low running costs.
• Optimum user protection by separating the main power circuit from the mains supply
• The device is made in microprocessor technology
• Automatic selection of the frequency and impedance of the power inverter
• Inductor operating frequency: 25 kHz - 60 kHz
• Overload alarm
• Cable connecting the power source with the exciter head 70 cm

• High mobility - weight only 4.5 kg and small dimensions - the size of a small welding machine.
• Power 1.5 kW , with a high load factor.
• Easy handling and access - 70 cm long coil connection cable with small handle.
• Flexibility and ease of use - 1x230V power supply, simple operation and speed of preparation.
• Versatile use - heating details of various shapes, flat, round, centrally located or on a flat surface.
• Available at a low price, a modern method of workshop induction heating of steel elements.

EQUIPMENT:

• Solid coils - for heating pipes, bolts, sections, etc. of different diameters.
• Flexible coils - are intended for wrapping the material subjected to heating with them.
• Ferrite coils and flat coils with focus - are intended for heating flat material, sheets, etc.
• Plastic suitcase.

APPLICATION:

• Automotive, railway and shipbuilding industry, machine industry, repair plants, assembly workshops, heating industry, installers, services, etc.
• Production, repairs, renovations, maintenance of machines.
• Details that require heating: bolts, rods, profiles, sheets, bearings, housings, drive shafts, hinges, nuts, pipes, gears, bearing fits, lambda probes, parts and components of machines and vehicles, exhaust systems, pulleys, clamps, etc.
• Heating of instruments and details before hardening, joining, soldering, welding.
• Defrosting
• Use for the same work as propane-oxygen and oxy-acetylene gas burners.

Heater technical data:

• Supply voltage: 230V
• Frequency: 50/60Hz
• Efficiency: 90% (PFC)
• Continuous heating/ratio: 100%
• Fixed inductors: YES
• Bent inductors: YES
• Coil burnout control: YES
• Short circuit protection: YES
• Induction coil presence check: YES
• Power consumption: 1.5kVA
• Working frequency: 25-60kHz
• Degree of protection: IP21S
• Dimensions: 200x140x75mm

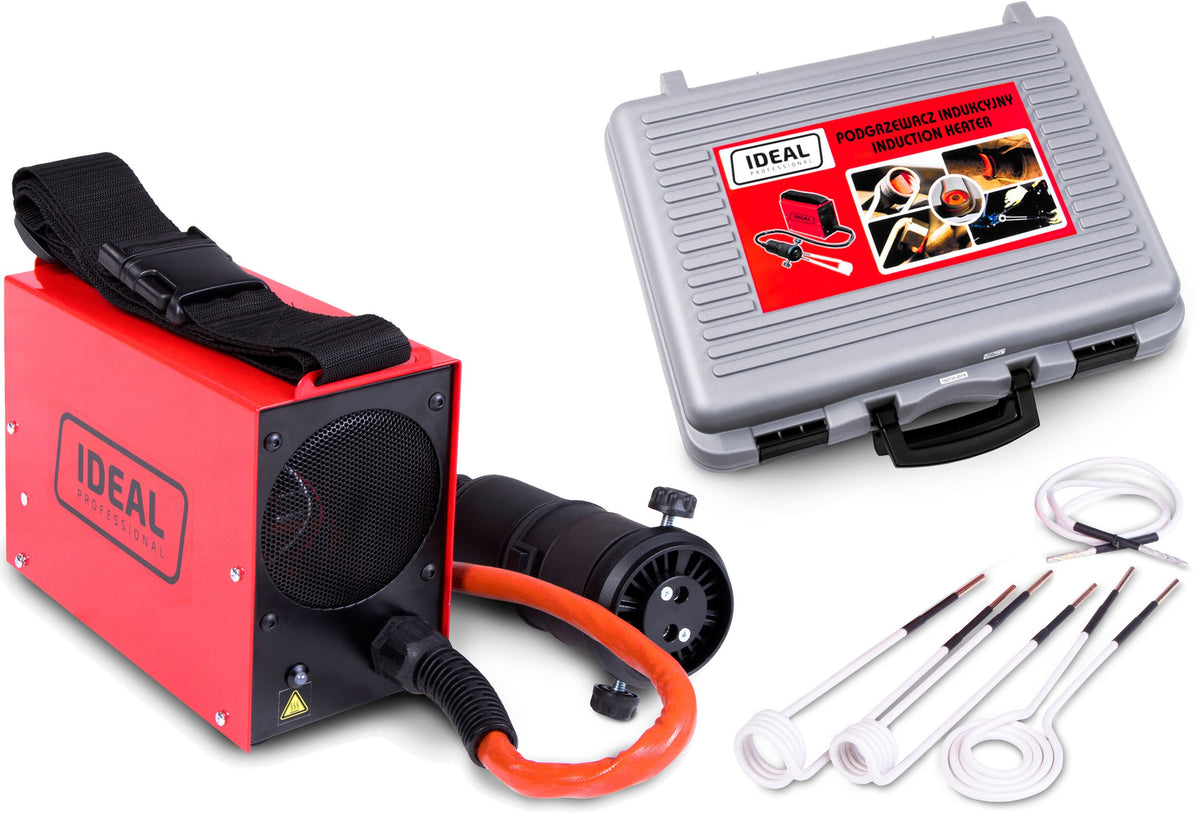

The complete kit includes:

• IDEAL HEATER heating device - 1 item,
• working cable - 1 pc,
• elastic cord L 800mm,
• straight coil 19-22mm-M8,
• straight coil 23-22mm-M10,
• coil for removing moldings and emblems,
• suitcase,
• user manual and warranty card
