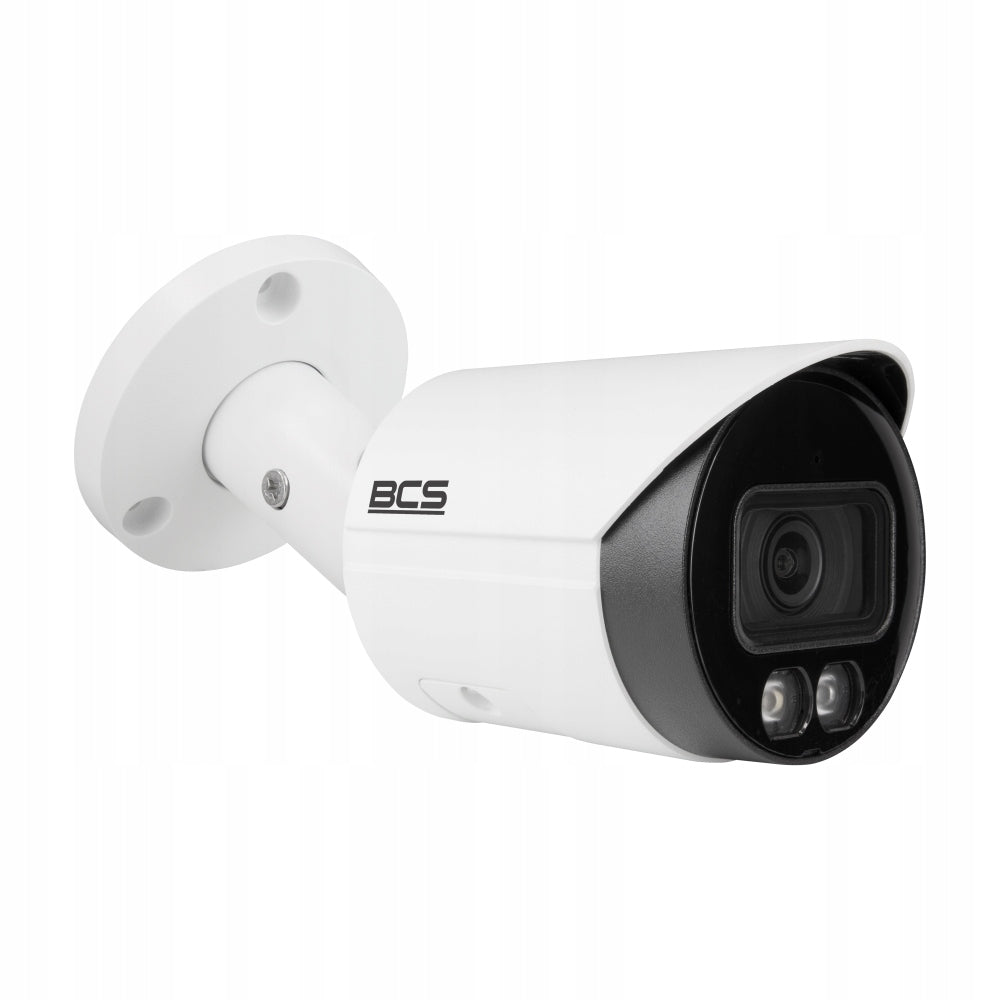

Stebėjimo kamera BCS-L-TIP14FCR3L3-Ai1 BCS LINE

Trumpai apie prekę

Prekė: Stebėjimo kamera BCS-L-TIP14FCR3L3-Ai1 BCS LINE. Kategorija: IP kameros.

• Gamintojas: BCS
• Modelis: BCS-L-TIP14FCR3L3-Ai1

BCS LINE BCS camera -L-TIP14FCR3L3-Ai1

The most important features

• 4Mpx Tube IP Camera
• 1/2.9" PS CMOS sensor
• NightColor technology
• Fixed lens 2.8mm
• WDR120dB
• IR 30m, WhiteLight 30m
• Microphone
• IP67 enclosure
• Built-in smart functions

Mobile application BCS Manager

Allows you to view NVR/XVR devices by BCS.

BCS Manager works both on the local Wifi network and on the GSM network. It allows connection to devices exposed on the Internet at a fixed IP address or using the P2P BCS cloud service (P2P BCS cloud requires proper preparation of the device).

• Device name: BCS-L-TIP14FCR3L3-Ai1
• Product line: BCS LINE
• Camera type: Tuba
• Resolution: 4 Mpx
• Converter: 1/2.9'' CMOS
• Scanning system: Progressive Scan
• Number of pixels: 2688 (H) × 1520 (V)
• RAM / ROM: 128 MB / 128 MB
• Lens: Permanent, 2.8 mm
• Aperture: F1.6
• Digital Zoo: 16×
• Angle of view: H: 95°, V: 52°, D: 114°
• DORI (Detection/Observation/Recognition/Identification): 64 m / 25 m / 13 m / 6 m
• Sensitivity: 0.006 Lux (colour), 0.0006 Lux (B/W), 0 Lux (IR)
• Signal/noise ratio: 56 dB
• White balance: Auto / manual
• WDR: 120 dB
• Background compensation: BLC / HLC / WDR (120 dB)
• Snapshot: Auto / manual, 1/3 ~ 1/100000 s
• Gain control: Auto / manual (AGC)
• Noise reduction: 3D DNR
• Image rotation: Mirror, Flip 0°/90°/180°/270°
• Number of streams: 2
• Resolutions: 4M (2688×1520), 3M (2304×1296), 2M (1920×1080), 1.3M (1280×960), 720P, D1, VGA, CIF
• Main stream: 2688×1520 (120 fps), 2560×1440 (125/30 fps)
• Second stream: 704×576 (125 fps), 704×480 (130 fps)
• Bitrate: H.264: 32 Kbps6144 Kbps, H.265: 12 Kbps6144 Kbps
• Video compression: H.265+ / H.265 / H.264+ / H.264 / MJPEG
• Day/night mode: Mechanical Infrared Filter (ICR)
• IR illuminator: IR LED + White Light, 30 m range
• NightColor: Yes
• Microphone: Yes
• Audio compression: G.711A / G.711Mu / G.726 / PCM
• Storage: FTP, SFTP, NAS
• Memory card slot: microSD up to 256 GB
• Motion detection: 4 zones
• Privacy masks: 4 zones
• Network interface: RJ-45 10/100 Mbps
• Compatibility: ONVIF (S/G/T)
• Protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP
• Power Supply: 12V DC/PoE (802.3af)
• Power consumption: Max 5.2 W
• Housing color: White
• Leak-proof class: IP67
• Working conditions: -40°C ~ +60°C, max 95% RH
• Dimensions: 166.2 × 70 × 70 mm
• Weight: 0.48 kg
• AI (Artificial Intelligence) functions:
• Perimeter protection: Detection of intrusion into the area and line crossings.
• Object recognition: Distinguish between people and motor vehicles, which reduces the number of false positives.
• SMD 4.0 (Intelligent Motion Detection): Precise motion detection with the ability to distinguish objects.
