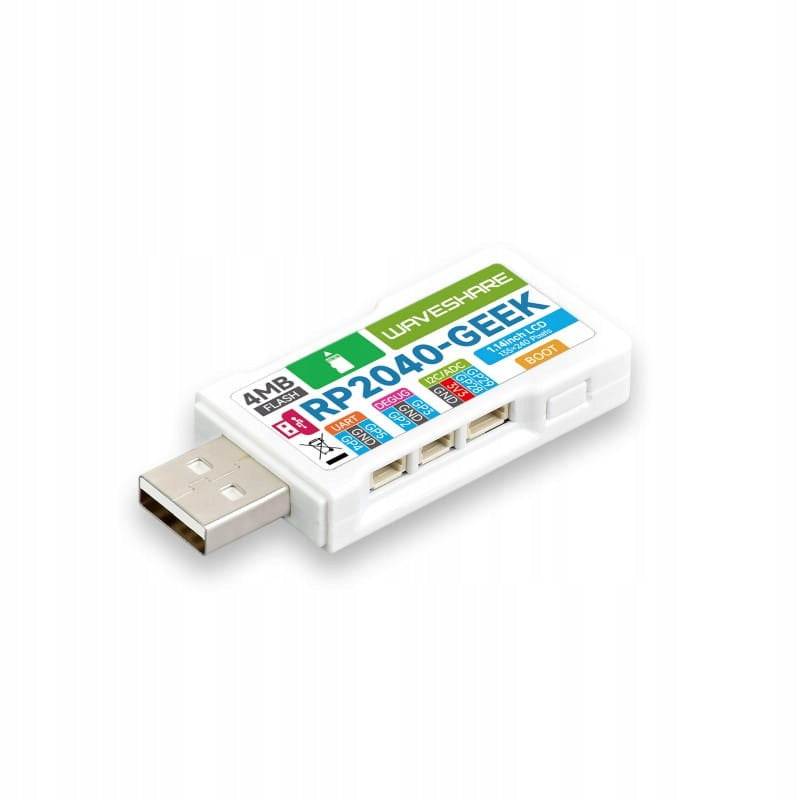

Programavimo plokštė RP2040-GEEK su USB-A ir 1,14" ekranu

Trumpai apie prekę

Prekė: Programavimo plokštė RP2040-GEEK su USB-A ir 1,14" ekranu. Kategorija: Priedai.

• Gamintojas: WaveShare
• Modelis: Waveshare 25394 RP2040-GEEK

RP2040-GEEK USB-A Development Board With 1.14 Inch 65K Color Display

⭐RP2040-GEEK is an innovative development board created by Waveshare, dedicated to technology enthusiasts. It is equipped with USB-A interface, small 1,14-inch LCD screen, TF card slot and other peripherals. The board is designed to allow you to experiment with different firmware for the SWD port, UART port, and I2C port.

⭐This development board is based on the RP2040 microcontroller, created by the world-famous Raspberry Pi from the UK. Its heart is the two-core ARM Cortex M0+ processor, which is characterized by a high operating frequency of up to 133 MHz. Thanks to this, the RP2040-GEEK is able to efficiently handle a variety of tasks and processes. The built-in SRAM memory with a capacity of 264 KB and 4 MB of Flash memory on board provide enough storage space and quick access to data.

⭐Additionally, the board has a color IPS LCD display with a diagonal of 1,14 inches and a resolution of 240×135 pixels, which allows for convenient presentation of information and data during operation. The RP2040-GEEK is also equipped with a 3PIN SWD port, which allows connection to the debugged target board, which is important for advanced projects. The standard CMSIS-DAP interface allows you to debug most ARM-based microcontrollers, which significantly expands the possibilities of using the board.

Specification:

• ✅Microcontroller: RP2040, designed by Raspberry Pi.
• ✅Processor: Dual-core ARM Cortex M0+ with frequencies up to 133MHz.
• ✅ SRAM: 264 KB.
• ✅Flash memory: 4 MB.
• ✅Display: 1.14-inch IPS LCD.
• ✅Display resolution: 240×135 pixels.
• ✅Display colors: 65K.
• ✅SWD port: 3PIN for debugging.
• ✅CMSIS-DAP interface: For debugging ARM microcontrollers.
• ✅Compatibility: OpenOCD and other tools that support CMSIS-DAP.
• ✅USB bridge to UART: 3PIN.
• ✅I2C port: 4PIN for target board testing.
• ✅Housing: Plastic included with cables.
• ✅Firmware: Open-source for easy updates.

Product properties:

• ✅Universality: The RP2040-GEEK combines multiple functions and interfaces, making it compatible with various debugging methods.
• ✅Extensibility: With various ports such as SWD, UART and I2C, the board can be easily expanded and customized to meet the individual needs of users.
• ✅Convenient display: Small but easy to read LCD display allows for efficient display of important information.
• ✅Debugging Adaptation: The board is designed for ease of debugging, which is crucial in many development projects.
• ✅Open Source: With open source firmware, the RP2040-GEEK is easy to update and customize to your needs.

⭐Many functions in one aesthetic device

⭐Construction of the module:

1. USB-A interface
2. UART socket
3. SWD socket
4. I2C port
5. TF card slot
6. 4 MB of NOR-Flash memory
7. RP2040
8. BOOT button

⭐Raspberry Pi visible in the picture are not part of the set and must be purchased separately!

▶ Set includes:

1. RP2040-GEEK x1
2. Wire set x1
