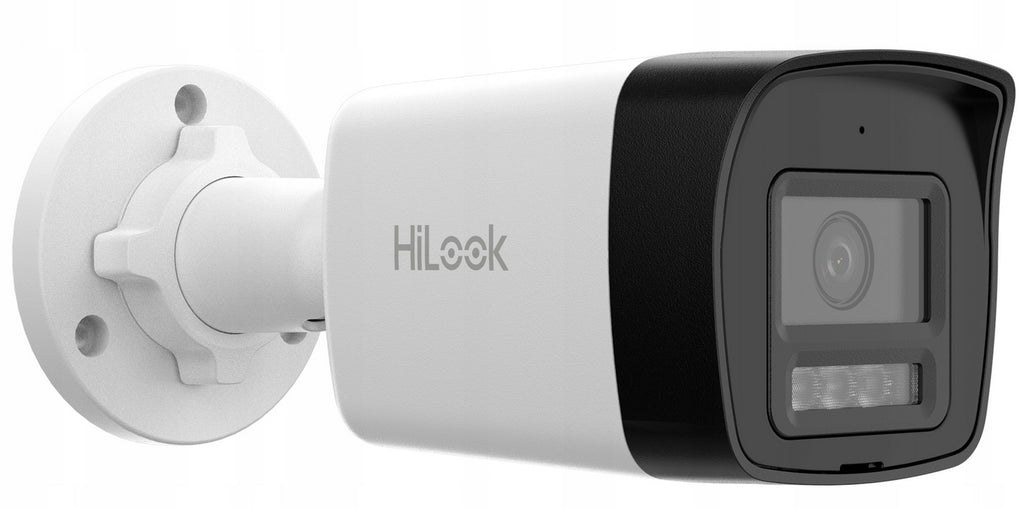

Lauko IP kamera Hikvision HiLook IPC-B140HA-LUC, 4MP, PoE

Trumpai apie prekę

Prekė: Lauko IP kamera Hikvision HiLook IPC-B140HA-LUC, 4MP, PoE. Kategorija: IP kameros.

• Gamintojas: Hikvision
• Modelis: VE-NC140F-LIU

IP / 4Mpx / 2.8mm / Smart Hybrid Light 20m / IP67 / H.265+ / PoE / Microphone

The HiLook by Hikvision IPC-B140HA-LUC is a new camera from the ECO Smart Hybrid Light series, with a resolution of 4MPx, designed to work in small monitoring systems such as homes, small businesses or parking lots.

The camera has a built-in dual illuminator (white + IR light) that allows you to record images at night both in color and infrared.

Key features:

✅ High image resolution in 4MPx @2560x1440 pixels

✅ Two illuminators on board the camera: IR and white light

✅ Motion detection with intelligent detection of person silhouettes

✅ Built-in microphone for audio recording

✅ Specific housing external IP67

✅ Power supply by PoE

✅ Easy installation and operation

• Converter: 1/2,8” 4MPx CMOS
• Recording resolution: 2560×1440 @20FPS
• Lens: wide-angle 2,8 mm
• Recording angle: ~104°
• Image compression: H.265, H.264+, H.264, MJPEG
• Wide dynamic range: DWDR
• Digital Noise Cancellation: Yes - 3D DNR
• Built-in microphone: Yes
• Night mode: Hybrid - color or infrared
• Infrared range: up to 20 m
• White light range: up to 15m
• Motion detection: yes - body detection and recognition: human
• P2P(cloud) support: Yes - a feature that allows remote access without port forwarding and public IP address
• Support in HiLook App: Yes
• Remote support: iVMS-4200, WEB interface, HiLook App/HikConnect
• Assembly: external or internal
• Power Supply: 12V or PoE
• Leak-proof class: IP67

The camera is sold without a 12V power supply. Compatible power supply is available at auction No. 16007754465.

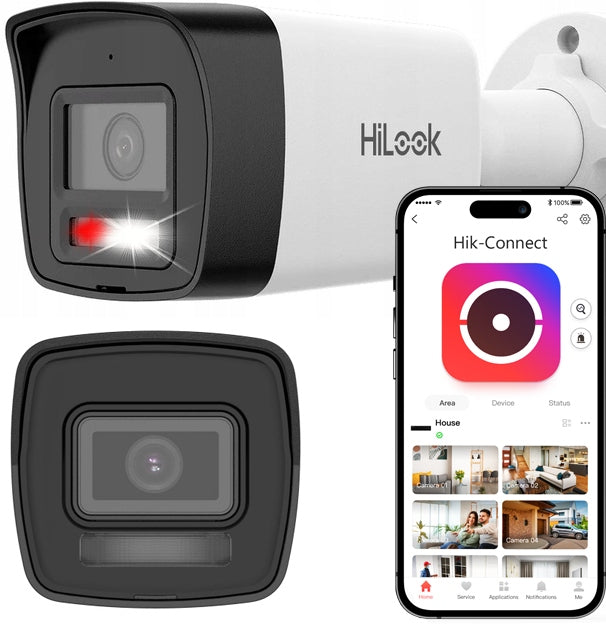

HiLook surveillance systems can be controlled, configured, and operated using the intuitive mobile app HiLook App/HikConnect for smartphones and tablets, as well as the iVMS-4200 software for PCs. This allows users to have constant control and monitoring of the observed area from anywhere in the world with network access. The app and software enable:

• Live view
• Remote playback of recordings
• Creation of motion detection scenarios and rules
• Control of PTZ (Pan-Tilt-Zoom) cameras
• Receiving event notifications

The app uses P2P cloud technology, so the system does not require port forwarding on your router.

The IPC-B140HA-LUC is part of a series of cameras using the innovative Hybrid Light technology - thanks to two types of illuminators on board, the camera allows effective observation at night both in infrared (black and white) and fully color mode.

Thanks to this, it guarantees an even higher level of security, enabling effective identification of objects also after their color, in any lighting conditions.

The camera works in 4Mpx resolution, allowing for much more accurate recording of details than standard FullHD models. The high resolution of the camera allows you to maintain high values of the DORI parameter even with a wide recording account.

The DORI value for the HiLook IPCAM-B4-P camera is:

• Detection(D): 56m
• Observation(O): 21m
• Recognition(R): 10m
• Identification(I): 5m

The camera has a built-in motion detection algorithm - when detecting moving objects on stage, the camera can send an alarm notification to the program and application.

What’s more, recording in motion detection mode, the camera allows you to save a very large amount of space on the hard drive, which positively affects its lifespan.

The advantage of the detection system in the IPC-B140HA-LUC camera is also the ability to recognize the silhouettes of people, which allows you to reduce false alarms by moving irrelevant objects.

Camera

• Sensor: 1/2.8" CMOS Progressive Scan
• Transmission Standard: IP
• Max. Resolution: 4MP @ 2560x1440
• Sensitivity: Color: 0.01 Lux @ (F2.2, AGC ON), B/W: 0 Lux with IR
• Shutter Speed: 1/3 s to 1/100,000 s
• Slow Shutter Mode: Supported
• Lens: 2.8 mm
• Recording Angle (Horizontal): Horizontal FOV 104°, Vertical FOV 57°, Diagonal FOV 123°
• Head Adjustment Range: Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°

Illuminators

• IR Range: Up to 20m
• IR Wavelength: 850 nm
• White Light Range: Up to 15m

Image Compression

• Video Compression: Main Stream: H.265+/H.264+/H.265/H.264; Sub-Stream: H.265/H.264/MJPEG
• H.264: Baseline Profile/Main Profile/High Profile
• H.264+: Main Stream
• H.265: Main Profile
• H.265+: Main Stream
• Video Bitrate: 32 Kbps to 8 Mbps

Smart Functions

• ROI: 1 fixed region for two streams


• Main Stream - Max. Frame Rate: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720)
• Sub-Stream - Max. Frame Rate: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360); 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
• Image Functions: BLC, HLC, 3D DNR
• Wide Dynamic Range: DWDR
• Smart Dual Illumination: Yes
• Image Settings: Saturation, exposure, contrast, sharpness, AGC, white balance
• Day/Night Mode: Auto/Manual switching

Network

• Network Interface: 1x RJ45 Ethernet 10/100 Mbps self-adaptive
• Network Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, SMTP
• Compatibility: ONVIF, ISAPI, SDK
• Selected Features: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
• Simultaneous Live View: Up to 6 channels
• Alarm Trigger: Motion detection, video tampering, unauthorized login
• Number of Users / Hosts: Up to 32 users; 3 permission levels: Administrator, Operator, User
• Client Software: iVMS-4200, HiLook App

General

• Built-in Microphone: Yes
• Power Supply: 12V DC or PoE (802.3af, Class 3)
• Material: Metal + Plastic
• Ingress Protection Rating: IP67
• Dimensions: 138.8 mm × 60.9 mm × 57.9 mm
• Weight: 0.2 Kg

⚠ CHOOSE CONSCIOUSLY⚠

Monitoring systems are an investment in security – not only property, but also data. Therefore, we encourage you to choose your equipment consciously from reputable manufacturers such as Hikvision. Unlike cheap, unverified OEM devices, Hikvision products provide:

✅ Regular device firmware updates to ensure compliance with the latest cybersecurity standards

✅ Stability and reliability of operation HikConnect - mobile application no.1 in the CCTV monitoring systems industry

✅ Advanced data encryption (AES-256, HTTPS, TLS 1.2/1.3) – guarantee of confidentiality of transmission

✅ Meeting strict ISO standards, including ISO 27701 (Personal Information Security Management) and CSA-Star (Cloud Data Security Guarantee)

By choosing Hikvision, you can be sure that your monitoring system meets the highest standards of quality, data protection and reliability.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Product weight with unit packaging	0.25 kg
Parametry	EAN (GTIN)	6942160490205
Parametry	Manufacturer code	IPC-B140HA-LUC
Parametry	Brand	Hikvision
Parametry	Model	VE-NC140F-LIU
Parametry	Packaging status	original
Parametry	Certificates of conformity	CE
Parametry	Batteries included	no
