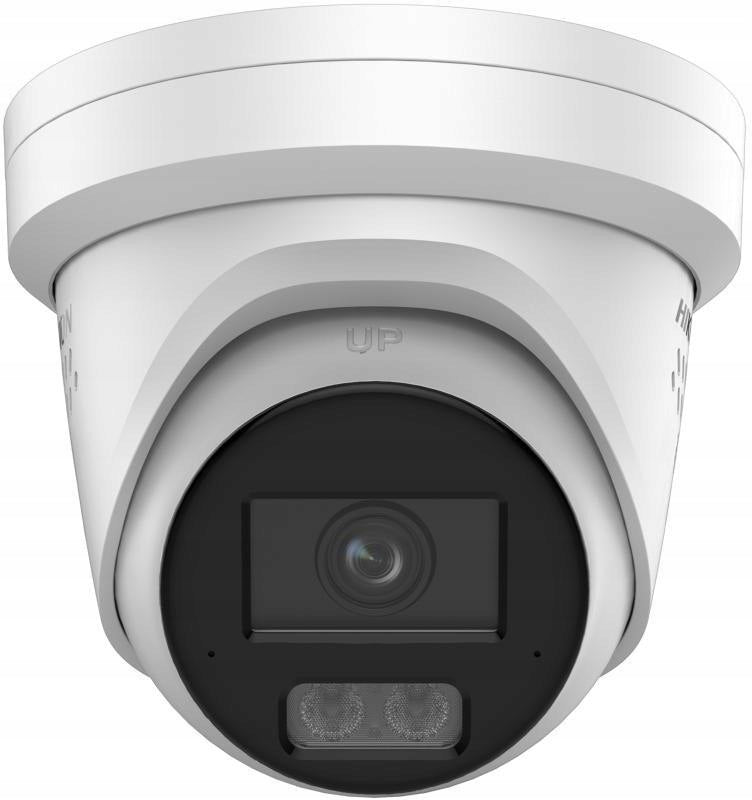

IP vaizdo kamera Hikvision DS-2CD23123G2-LIS2UY/SL, 12MP, 2.8 mm

Trumpai apie prekę

Prekė: IP vaizdo kamera Hikvision DS-2CD23123G2-LIS2UY/SL, 12MP, 2.8 mm. Kategorija: IP kameros.

• Gamintojas: Hikvision
• Modelis: DS-2CD23123G2-LIS2UY/SL(2.8mm)

IP camera Hikvision 12MP DS-2CD23123G2-LIS2UY/SL(2.8mm)

Model: DS-2CD23123G2-LIS2UY/SL(2.8mm)

Purpose

• 12 MP network dome camera with AcuSense technology, strobe light, sound warning and intelligent hybrid light
• HD Ultra High Definition provides a very high level of detail and realistic picture
• Active deterrence with strobe light and sound alarm in SL version white light and SRB red blue light
• Intelligent hybrid light integrating infrared and white light with three lighting modes
• Classification of persons and vehicles based on deep learning algorithms
• Crystal clear sound thanks to built-in dual array microphone and smart PA speaker
• Clear picture even with strong backlighting thanks to True WDR 120 dB technology
• High-performance H.265+ video compression
• Water and dust resistance according to IP67 class
• Anti-corrosion design for greater reliability and longer life compared to standard NEMA 4X enclosures

Technical specification

Model

DS-2CD23123G2-LIS2UY/SL (2.8 mm)

Image transducer

1/1.8" Progressive Scan CMOS

Maximum resolution

4608 × 2592

Minimum lighting

Colour: 0.005 lx at (F1.6, AGC ON. ), 0 lx with lighting on

Shutter speed

1 s to 1/100 000 s

Day/night mode

IR cut-off filter

Position adjustment

Rotation: 0°-360°, tilt: 0°-75°, rotation: 0°-360°

Lens type

Fixed focal length, 2.8 mm

Field of view - 2.8 mm

Horizontal: 94.2°, vertical: 51.1°, diagonal: 110.2°

Lens mount

M16

Aperture type

Fixed

Aperture

F1.6

Depth of field - 2.8 mm

from 2.9 m to ∞

DORI - 2.8 mm

Detection: 117 m, observation: 46 m, reconnaissance: 23 m, identification: 11 m

Type of illuminator

IR Infrared, White Light

Illuminator range

up to 40 m

Smart Supplement Light

Yes

IR wavelength

850 nm

Main stream - 50 Hz

20 kl. /s (4608 × 2592); 25 kl. /s (3840 × 2160, 2688 × 1520, 1920 × 1080, 1280 × 720)

Main stream - 60 Hz

20 kl. /s (4608 × 2592); 30 kl. /s (3840 × 2160, 2688 × 1520, 1920 × 1080, 1280 × 720)

Substream

25 kl. /s (50 Hz) or 30 fps. /s (60 Hz) at 1280 × 720, 640 × 480, 640 × 360

Third stream

10 kl. /s at 1920 × 1080, 1280 × 720, 640 × 480, 640 × 360

Video compression

H.265, H.264, H.264+, H.265+

Bitrate video

from 32 kbps to 20 Mbps

Type H.264

Basic profile, main profile, high profile

Type H.265

Main profile

Scalable video encoding (SVC)

H.264 and H.265 encoding

Bitrate control

CBR, VBR

Region of interest (ROI)

1 fixed region for the main stream

Trimming the target

Yes

Audio type

Mono

Audio compression

G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC

Bitrate audio

64 kbps (G.711), 16 kbps (G.722.1, G.726), 16-64 kbps (AAC-LC), 32-192 kbps (MP2L2), 8-320 kbps (MP3)

Audio sampling rate

8 kHz / 16 kHz / 32 kHz / 48 kHz

Environmental Noise Filtering

Yes

Network protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, WebSockets,

Simultaneous live view

up to 6 channels

API

ONVIF (Profile S, G, T), ISAPI, SDK, ISUP

Safeguards

Password protection, complicated password, HTTPS encryption, 802.1X, watermark, IP filter, basic and abbreviated authentication, TLS 1.1/1.2/1.3, audit log

Number of users

up to 32

User levels

Administrator, operator, user

Client software

iVMS-4200, Hik-Connect, Hik-Central

Network memory

NAS (NFS, SMB/CIFS), Automatic Network Refill (ANR)

WDR

120 dB

SNR

≥ 52 dB

Image improvement

BLC, HLC, 3D DNR, distortion correction, fog removal

Masks of privacy

4 programmable polygonal masks

Ethernet interface

1 × RJ45 10M/100M

Memory card slot

microSD / microSDHC / microSDXC up to 512 GB

Built-in microphone

Dual Matrix Microphone

Built-in speaker

Yes, 2 W, 110 dB

Audio Input/Output

1 line input, 1 line output

Emergency Input/Output

1 input, 1 output (max. 24 VDC / 24 VAC, 1 A)

Basic events

Motion detection (human/vehicle), image sabotage, exceptions

Intelligent events

Detection of scene change

Associations of events

FTP, NAS, Memory Card, Notifications, Recording, Drops, Email

AI features

Face Capture, Perimeter Protection

Power supply

12 V DC ±25%, 1.34 A, max. 16 IN

PoE

IEEE 802.3at, Class 4, max. 18 IN

Housing material

Metal

Dimensions

Ø127.3 mm × 96.3 mm

Weight

ok. 590 g

Working conditions

-30 °C to 60 °C

Degree of protection

IP67

Corrosion protection

NEMA 4X

• EAN: 6936422186975
• Symbol: 69570
