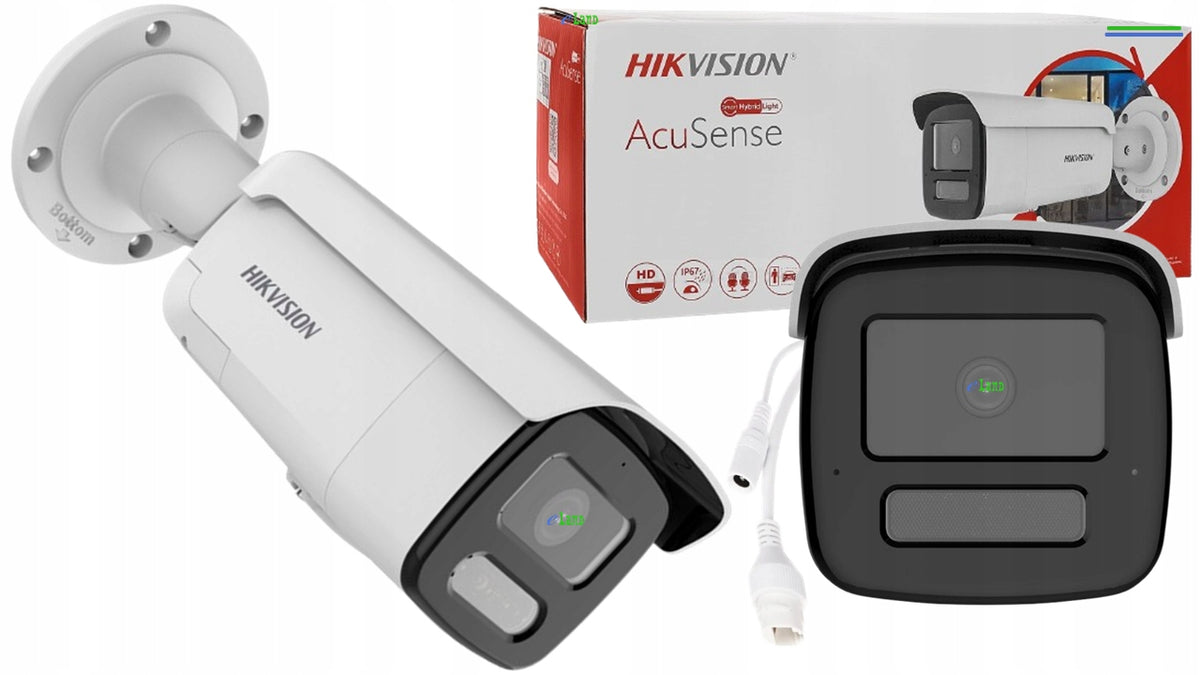

IP kamera Hikvision DS-2CD2T43G2-4LI, 4 mm, AcuSense, IR+LED apšvietimas 80 m

Trumpai apie prekę

Prekė: IP kamera Hikvision DS-2CD2T43G2-4LI, 4 mm, AcuSense, IR+LED apšvietimas 80 m. Kategorija: IP kameros.

• Gamintojas: Hikvision
• Modelis: DS-2CD2T43G2-4I

4Mpix (4mm) AcuSense IP Tube Camera, Smart Light, IR+LED 60m

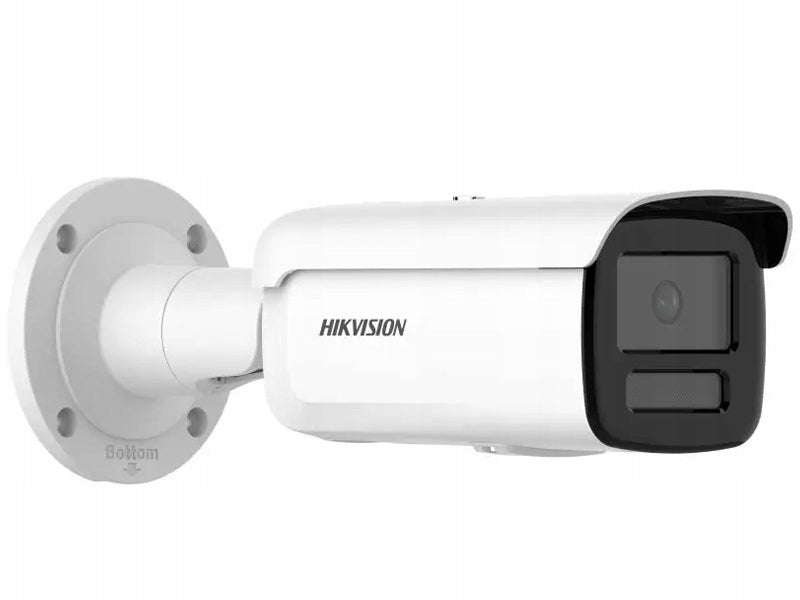

DS-2CD2T43G2-4LI is a horn camera with a fixed lens and illuminator working in white or infrared light technology at a distance of up to 80 meters. The device comes from the Hikvision Smart Hybrid Light series and is equipped with AcuSense technologies. The camera can work in three different night modes offering black and white image using IR diode, color when using visible light LED or SMART mode, which automatically changes IR mode to LED when human or vehicle is detected.

• 1/2.9" 4MP Progressive Scan CMOS sensor
• resolution: 2688×1520 (4Mpx) @ 25/30kl/s
• Interface: 1x RJ45 Ethernet 10/100Mbps PoE 802.3af
• compression: H.265+/ H.265/ H.264+/ H.264/ MJPEG
• Sensitivity: 0.005lux @ F1.6 (AGC ON), 0lux (IR/LED ON)
• lens: 4 mm @ F1.6
• Dual illuminator: 4x smart IR LEDs and 4x smart LEDs white light (range80m)
• 3 illuminator operating modes (IR only, LED only, Smart - IR + LED)
• AWB, AGC, BLC, HLC, 3D DNR, WDR 120dB, ROI
• AI functions: perimeter protection, motion detection
• Smart Hybrid Light - the use of a double illuminator
• AcuSense - object classification with alarm filtering
• Supports microSD/SDHC/SDXC cards up to 512GB
• Support: ONVIF, ISAPI, SDK, ISUP
• Processing speed and resolution: 25/30fps for 2688×1520 (4Mpx); 25/30fps for 1920×1080 (1080p)
• bitrate: 32Kbps ~ 8Mbps
• image view: programs: iVMS-4200, Hik-Central, web browsers: IE, Firefox, Chrome, Safari, Android or iOS applications: Hik-Connect, Hik-Partner Pro
• Power supply: 12V DC or PoE 802.3af
• housing: tightness class (IP67)

The smart hybrid illuminator is one of the illuminator modes used in the camera. It allows white light to be switched on only if it is detected in the detection zone of a human or vehicle. In the event that a person leaves the monitored area, the LED illuminator is switched to IR illumination after 1 minute. In addition to the mentioned mode, the user can also choose from LED mode (only white light, which allows color image at night); IR mode (infrared only) or complete switching off the illuminator.

Motion detection based on object recognition Motion Detection 2.0, MD2.0) – The technology based on a special algorithm first classifies objects (human/vehicle) and then in the second stage classifies motion. This allows for correct alerting regardless of the type of platform that will receive already developed alarm information, be it IVMS 4200, HikCentral or other Hikvision software. Thanks to the motion detection function with classification, we can count on high accuracy and effectiveness of alarming. It is enough to draw a standard motion detection grid (activity mask) and determine what type of objects are to be analyzed by the device. .

AcuSense is primarily about detecting human and vehicle silhouettes, but also filtering alarms from sources other than people and vehicles. In addition, AcuSense series cameras, using the latest deep learning technology, are able to extract people and vehicles from a large video dataset and save snapshots of objects for efficient search.

Power over Ethernet (PoE) is a solution designed to carry out quick and uncomplicated installation of network devices and comfortable operation of equipment and easy modernization of installation. The PoE solution allows you to place the camera away from traditional power sources, which translates into saving the total number of wires necessary to start the device.

Allows you to manage the camera without additional configuration on the router. With HIK-CONNECT, you have the ability to remotely control all camera functions at your fingertips.

HIK-CONNECT service is designed to work as well as with NVR and IPC cameras Hikvision. Thanks to the instant warning function, you can receive instant motion detection notifications so that we can take the necessary actions to ensure the safety of your property or loved ones.

Key Features:

1. Real-time live view.

2. Playback of recorded films.

3. Instant Alerts

ROI | WDR 120dB | 3D DNR | HLC | BLC

ROI (Region of Interest) allows you to deliver high-quality recording only from the area selected by the user. In others outside the ROI, the camera transmits an image of inferior quality or does not transmit it at all.

WDR 120 dB improves the reproduction of the scene in case of large differences in the lighting level of different parts of the scene. Typical applications for this functionality are glazed passages, entrances to buildings, etc. This technology flawlessly copes with recording images in the presence of large contrasts of light, which so often can interfere with the correct operation of the camera.

3D DNR It causes multidimensional filtering of transducer pixels to remove noise-related effects in the recording resulting from interference (resulting, for example, from changes in signal intensity) and correct color rendering by the camera.

HLC automatically detects spots in the frame that are too exposed and then lowers their brightness. This allows you to see all the details, e.g. License plates of cars, which works best at night or in the case of monitoring the underground car park.

BLC is a technology used in video surveillance systems that improves image quality in difficult lighting conditions, especially in situations where the background is strongly illuminated and the foreground becomes underexposed

• Converter: 1/2.9″ Progressive Scan CMOS
• Sensitivity: Colour: 0.005 Lux @ (F1.6, AGC ON) 0 Lux (LED ON)
• Snapshot: 1/3 s to 1/100 000 s
• Position adjustment: Panorama (pan): 0° ~ 360°, slope (tilt): 0° ~ 90°, rotation: 0° ~ 360°
• Focal length: 4 mm
• Angle of view: Horizontal: 84°; vertical: 45°; diagonal: 100°
• Aperture: F1.6
• Attachment: M12
• Depth of field: 1,4 m ~ ∞
• Illuminator type: IR and LED (white light)
• Number of LEDs: 4x IR LED, 4x LED
• Range: 8 m
• Intelligent illuminator: Yes
• IR wavelength: 850 nm
• Working modes: IR only, LED only, Smart - IR + LED (classification of people and vehicles), illuminator always on / off, schedule
• Maximum resolution: 4.0 Mpx, 2688×1520 pixels
• Compression*: Main stream: H.265+ / H.265 / H.264+ / H.264 Auxiliary stream: H.265 / H.264 / MJPEG Third stream: H.265 / H.264
• Type H.264: Baseline Profile / Main Profile / High Profile
• Type H.265: Main Profile
• Bitrate: 32 Kbps ~ 8 Mbps
• Bitrate control: CBR / VBR
• SVC: Yes, for H.265 and H.264
• ROI: Single-Region support for main and secondary streams
• SNR: ≥52 dB
• Day/night mode: Auto/schedule
• Image enhancement features: BLC, HLC, 3D DNR
• WDR: 120 dB
• Privacy masks: 8x
• Image parameter switch: Yes
• Image functions: Rotate, saturation, brightness, contrast, sharpness, gain, white balance (adjustable using software or web browser)
• Live view: Up to 6 channels simultaneously
• Compliance with the standard: ONVIF (profile S, profile G), ISAPI, SDK, ISUP
• Supported network protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, Webb
• Users: Support up to 32 users / 3 levels of access: administrator, operator, user
• Security: Password protection, complicated password, HTTPS encryption, IP address filter, security audit log, basic and encrypted authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and hash authentication for ONVIF
• Archiving: MicroSD/SDHC/SDXC (512 GB), NAS (NFS, SMB/CIFS), ANR
• Remote support: iVMS-4200, Hik-Connect, Hik-Central
• Basic Ai functions: Motion detection, video tamper alarm, exception (network disconnection, IP address conflict, illegal login, full microSD card, microSD card error)
• Smart: Unattended baggage detection, object deletion detection
• Motion detection: Yes (classification of people and vehicles)
• Perimeter protection: Line crossing detection, intrusion detection, region entry detection, region exit detection. All based on the classification of people and vehicles.
• Filtering false alarms: Filtering analysis alarms based on object recognition (human, vehicle)
• Network: 1x RJ-45 10/100 Base-T/Base-TX
• Memory: 1x microSD/ microSDHC/ microSDXC card slot up to 512 GB
• Power supply: 1x socket 5,5/2,1 on the cable
• Reset: 1x button
• Languages: Notification methods
• 33 languages (see data sheet): Transfer to NAS/memory card/FTP, notification to surveillance center, sending email, triggering recording, triggering capture
• Notification methods: Sending to NAS / memory card / FTP, notifying the surveillance center, sending emails, triggering recording, triggering capture
• Protection class: IP67 (IEC 60529-2013)
• Power Supply: 12 V DC (±25%) PoE (802.3af, Class 3)
• Power consumption: DC: max. 10 W (0,83 A, 12 V DC) PoE: max. 11 W (802.3af @ 36 V ~ 57 V)
• Moisture: < 95% (non-condensing)
• Working temperature: -30°C ~ +60°C
• Material: Metal except canopy
• Weight: 1150 g
• Dimensions (L. /W. /H ): 286,7×93,1×91,2 mm

• original product of the brand Hikvision
• instantly you will receive the purchased device
• full support during selection and commissioning
• If you have any doubts, we will be happy to advise and help

Specifications
