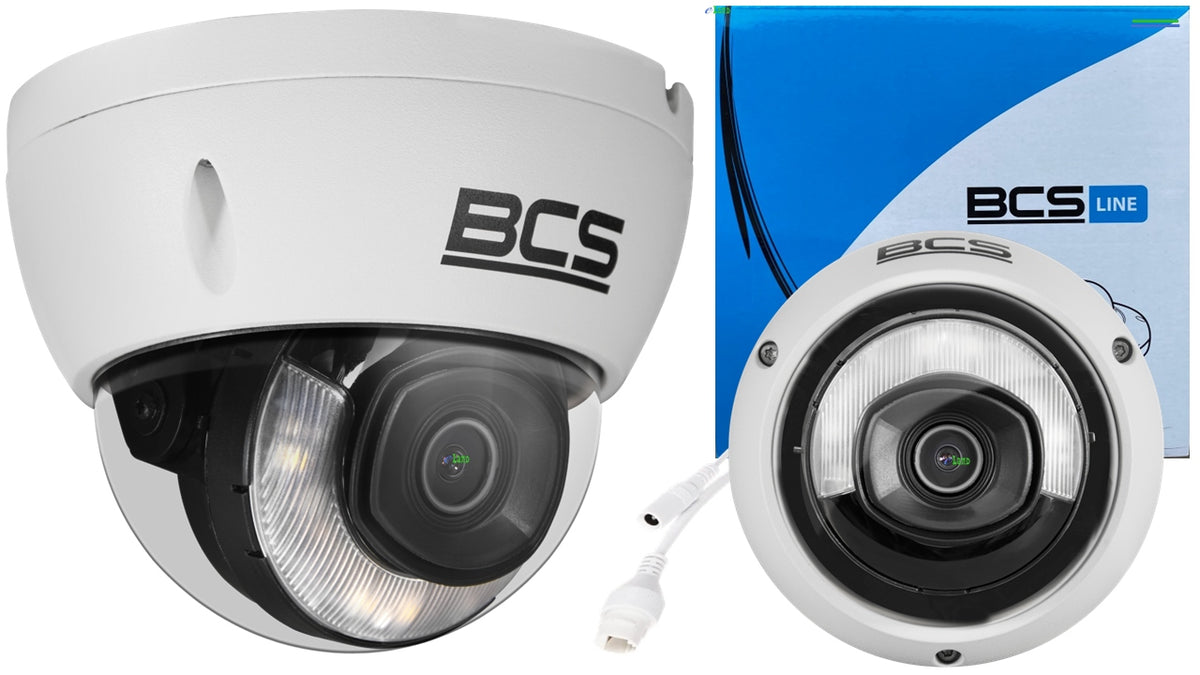

IP kamera BCS L-DIP16FCR3L3-Ai1, 6MP, 2.8mm, NightColor

Trumpai apie prekę

Prekė: IP kamera BCS L-DIP16FCR3L3-Ai1, 6MP, 2.8mm, NightColor. Kategorija: IP kameros.

• Gamintojas: BCS
• Modelis: Kamera kopułkowa IP 6Mpx 2,8mm

IP Camera 6 Mpx, 2,8mm Lens, Microphone, SD Card Slot

NightColor

6Mpx dome IP camera with 2.8mm lens. The camera has built-in functions ensuring high quality of the analyzed image, including: 3D DNR digital noise reduction function eliminating noise generated in low light, wide dynamic range WDR 120dB - the ability to observe the area where both dark and bright objects are located, AWB, BLC, HLC and many others. The built-in memory slot allows you to connect a micro SD card with a capacity of up to 256GB to the camera. Power supply: DC 12V, PoE(802.3af).

The camera has the ability to stream images in real time using the RTMP protocol in popular streaming services.

• 1/2.7" 6Mpx Progressive Scan Transducer
• NightColor technology
• H.265 / H.265+ / H.264 / H.264+ / MJPEG
• Functions AGC, AWB, BLC, HLC, WDR(120dB), 3D DNR
• 2.8mm Lens
• IR illuminator up to 30m
• Motion detection, privacy masks
• Built-in intelligent functions: Built-in intelligent image recognition and analysis algorithms
• Perimeter protection: Intrusion into the area, crossing the line
• Object Recognition: Person/mechanical vehicle recognition for intrusion into the area, line crossing reduces false alarm call
• SMD - intelligent motion detection: SMD Plus
• Built-in microphone
• Outdoor enclosure IP67, IK10
• microSD memory card slot max. 256GB
• 12V DC/PoE(802.3af) power supply
• Matching camera adapters: BCS-AD23, BCS-UD1, BCS-P-A173, BCS-UD3, BCS-ADU125

The high sensitivity of the image sensor combined with the low aperture allows you to generate a color image even in night conditions. This makes it easier to read the event accurately.

The operation of the camera in night conditions is based on a high sensitivity transducer of 0.0007 lux and an aperture with a minimum value of F1.0. This ensures that as much light as possible enters and thus allows you to get a color image where the lighting is insufficient.

Characteristic of this type of cameras is a better contrast effect in low-light areas, so you can get more visual details, compared to standard devices.

• Camera Type: Dome
• Resolution: 6 MP
• Image Sensor: 1/2.7'' CMOS
• Scanning System: Progressive Scan
• Pixels: 3288(H)x1850(V)
• RAM: 256MB
• ROM: 128MB
• Lens: Fixed
• Focal Length: 2.8 mm
• Aperture: F1.6
• Focus: Fixed
• Iris: Fixed
• Digital Zoom: 16x
• Field of View: H: 112° V: 61° D: 132°
• DORI Distance: Detection 64m/ Observation 25m/ Recognition 13m/ Identification 6m
• Camera Sensitivity: 0.007Lux(Color, F1.6, 30IRE) 0.0007Lux(F1.6, B/W, 30IRE) 0Lux(IR)
• Signal-to-Noise Ratio: 56dB
• White Balance: (AWB) Auto / Manual
• WDR: 120dB
• Backlight Compensation: BLC / HLC / WDR(120dB)
• Shutter Speed: Auto / Manual 1/3~1/100000s
• Gain Control: (AGC) Auto / Manual
• Noise Reduction: 3D DNR
• RoI: Region of Interest
• Image Rotation: Mirror, Flip 0°/90°/180°/270°
• Number of Streams: 2
• Resolutions: 6MP (3288x1850/3200x1800) / 5MP (2880x1620) / 4MP (2688x1520) / 3MP (2048x1536/2304x1296) / 1080p (1920x1080) / 1.3MP (1280x960) / 720p (1280x720) / D1 (704x576/704x480) / VGA (640x480) / CIF (352x288/352x240)
• Main Stream: 3288x1850 (1-20 fps)/2688x1520 (1-25/30 fps)
• Sub Stream: 704x576 (1-25 fps)/704x480 (1-30 fps)
• Bitrate: H.264: 32 kb/s~8192 kb/s H.265: 12 kb/s~8192 kb/s
• Video Compression: H.265 / H.265+ / H.264 / H.264+ / MJPEG
• Day/Night: ICR Mechanical Infrared Cut Filter
• Illuminator Type: IR LED + White Light
• IR Distance: 30m
• Night Color: Yes
• Microphone: Yes
• Audio Compression: G.711A / G.711Mu / G.726 / PCM
• Storage: FTP, SFTP, NAS
• Memory Card Slot: microSD 256GB
• Supported Platforms: Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App (iOS, Android)
• Motion Detection: 4 areas
• Privacy Masks: 4 areas
• Network: RJ-45 10/100 Mb/s
• Compliance: ONVIF(S/G/T)
• Protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP , RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UpnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, P2P, Bonjour, Auto Registration
• Security: Video / Firmware / Configuration encryption, Digest, WSSE, Account lockout, Security logs, IP/MAC filtering, Generation and importing of X.509 certification, syslog, HTTPS, 802.1x, Trusted boot / execution / upgrade
• Power Supply: 12V DC / PoE(802.3af)
• Power Consumption: Max 8.2W
• IP Rating: IP67
• IK10: Yes
• Operating Conditions: -40°C~+60°C max 95% RH
• Dimensions: ⌀109.9 x 81mm
• AI - Built-in Intelligent Functions: Built-in intelligent image recognition and analysis algorithms
• AI - Perimeter Protection: Area intrusion, line crossing
• AI - Object Recognition: Person/Motor Vehicle recognition for area intrusion and line crossing reduces false alarms.
• AI - SMD - Smart Motion Detection: SMD Plus

• original product of the brand BCS
• instantly you will receive the purchased device
• full support during selection and commissioning
• If you have doubts, we will be happy to advise and help

Specifications
