Hidraulinis dirbtuvių kranas HDS 1000kg varikliui

Trumpai apie prekę

Prekė: Hidraulinis dirbtuvių kranas HDS 1000kg varikliui. Kategorija: Variklių stovai ir keltuvai.

• Gamintojas: no brand
• Modelis: KD12684

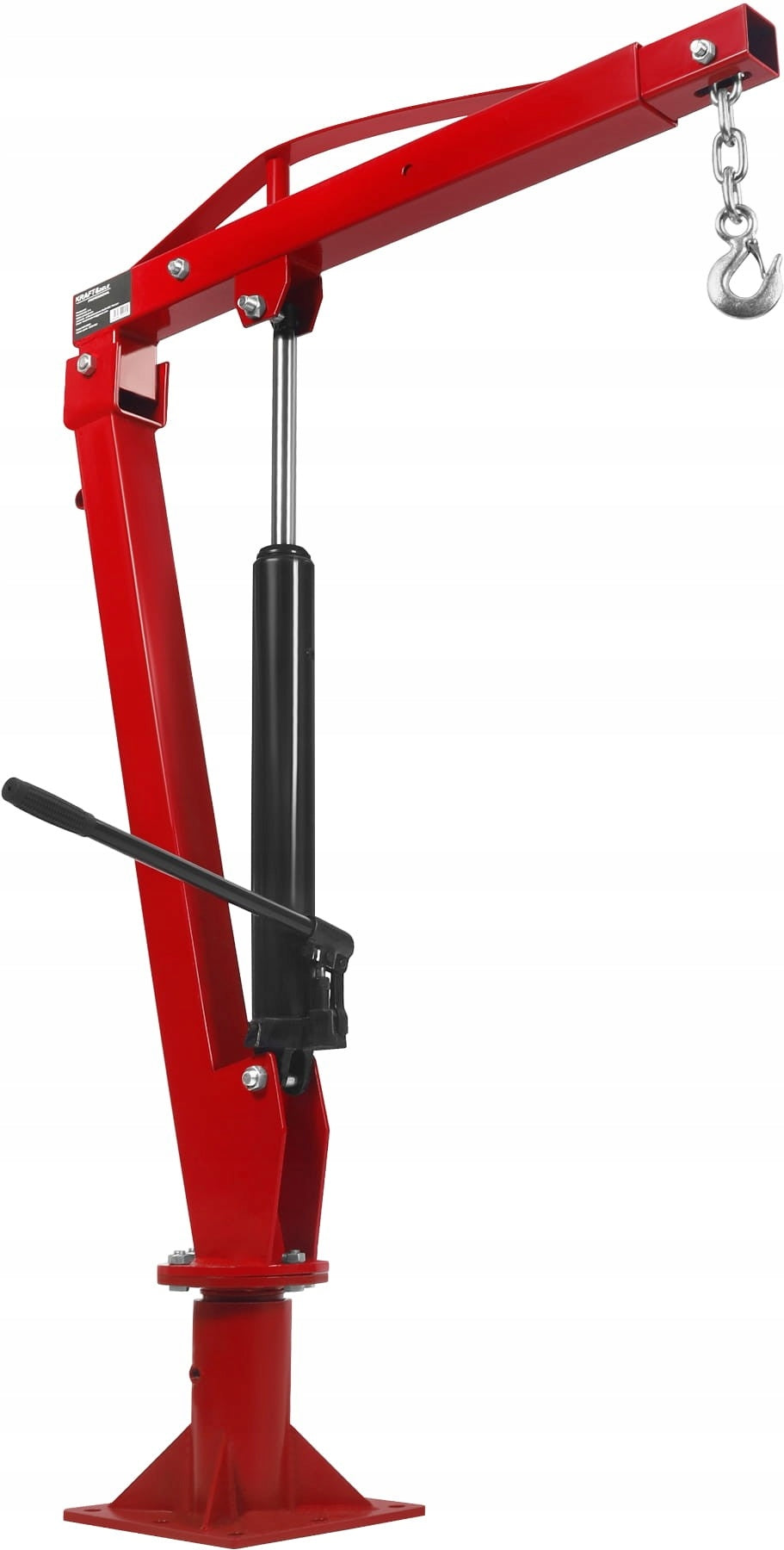

KD12684 by KRAFT&DELE is a robust HDS hydraulic crane lift with a maximum lifting capacity of 1000 kg. The design is designed for installation on the vehicle (e.g. tow truck, trailer, van) or in a fixed foundation in a workshop or warehouse.

The device is perfect for lifting heavy loads such as motors, machines, metal or structural elements. The steel construction ensures high strength and stability, while the hydraulic cylinder allows for smooth and controlled lifting.

The two-stage arm with lock allows you to adjust the working range to your current needs. With a boom length of 700 mm, the lift reaches a lifting capacity of 1000 kg, while with a maximum extension of 1100 mm – 250 kg. Such adjustment increases the versatility of the device and allows you to work in a limited space.

The rotary mechanism based on roller bearings ensures smooth rotation even under heavy loads.

PRODUCT FEATURES:

✅ Maximum lifting capacity of 1000 kg

✅ Steel structure for mounting on a vehicle or foundation

✅ Two-stage arm with lock

✅ Adjustable boom 700 – 1100 mm

✅ Lifting capacity 1000 kg (700 mm) / 250 kg (1100 mm)

✅ Maximum lifting height 1500 – 1690 mm

✅ Rotary head on roller bearings

✅ Smooth and stable hydraulic operation

TECHNICAL DATA:

⚙ Model KD12684

⚙ Type HDS Hydraulic Crane Lifter

⚙ Maximum lifting capacity of 1000 kg

⚙ Lifting capacity at 700 mm 1000 kg

⚙ Lifting capacity at 1100 mm 250 kg

⚙ Boom range 700 – 1100 mm

⚙ Maximum lifting height 1500 – 1690 mm

⚙ Rotary mechanism of roller bearings

⚙ Weight 21,5 kg

COMPOSITION OF THE PRODUCT:

✅ Hydraulic crane lift KD12684

✅ Straight actuator handle

✅ Handle for actuator bent

✅ Screw-in lift swivel lock

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	no brand
Parametry	Manufacturer code	KD12684
Parametry	EAN (GTIN)	5903957020532
