Dokavimo stotis Kramer KDock-5 su USB-C

Trumpai apie prekę

Prekė: Dokavimo stotis Kramer KDock-5 su USB-C. Kategorija: Dokavimo stotelės.

• Gamintojas: KRAMER
• Modelis: 91-00017599

Since 1981, Kramer Electronics has been a leading player and pioneer in the Pro AV (Professional Audio-Visual) industry, offering devices for the distribution of digital and analog signals. With customers in more than 90 countries on six continents, Kramer offers an extensive and innovative range of Pro AV products and solutions for businesses, education, houses of worship, government, live events, healthcare and more.

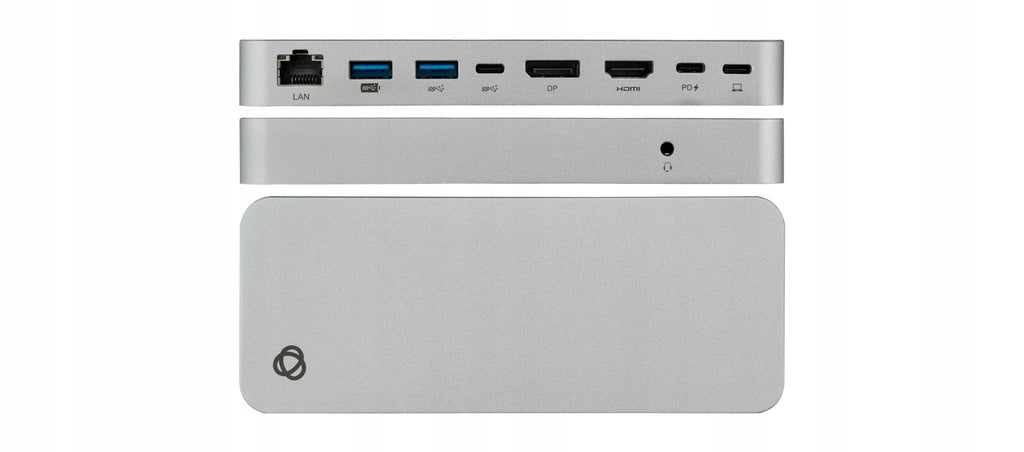

Docking Station Kramer USB-C Hub Multiport Adapter KDock-5

Kramer KDock−5 is a high-end multiport adapter on a USB−C connector in a compact aluminum housing that provides excellent heat dissipation and high durability for everyday use. KDock−5 can connect your USB−C device to HDMI and DisplayPort video outputs, three USB 3.2 Gen 1 ports, a network port, an audio/microphone port, and a USB−C port with charging capability.

KDock−5 is ideal as a personal workstation in the office or at home, as well as for small meeting rooms or meeting places.

• Supports HDMI and DisplayPort video outputs.
• Supports USB speed connection up to 5Gbps between host and docking station.
• Supports Ethernet up to 1Gbps.
• Includes 3,5mm headset jack.

Entrance

• 1 x USB-C: on a female USB Type-C connector

Exits

• 1 x HDMI: on female HDMI connector
• 1 x DisplayPort: on a female DisplayPort connector
• 1 x USB 3.2 Gen 1: on female USB-A connector (5V/1.5A)
• 1 x USB 3.2 Gen 1: on female USB-A connector (5V/0.9A)
• 1 x USB 3.2 Gen 1: on female USB Type-C connectors (5V/0.9A)
• 1 x Ethernet: on RJ-45 connector (10/100/1000)
• 1 x 3.5 mm Mini Jack: for audio and microphone
• 1 x USB-C: on a female USB Type-C PD connector for charging (max. 100W)

Video

• Windows MST mode max. resolution: 3840x2160p@60Hz when a single display is connected
• Windows MST mode max. resolution: 3840x2160p@30Hz when two displays are connected
• Mac OS SST mode max. resolution: 3840x2160p@60Hz when single or dual display is connected

Extended Ethernet

• Maximum data rate: 1000 Mbps (Gigabit)
• Includes: Wake-on-LAN (WoL), single Mac address, PXE boot

Transmission speed

• USB 3.0 data transfer rate: up to 5.0 Gbps
• USB 3.2 Gen data transfer rate 1: up to 5.0 Gbps

Power supply

• Power Delivery: up to 100W (requires connection of the appropriate power supply to the USB-C PD port)
• USB charging: BC1.2 (5V 1,5A)
• The station itself does not require an additional power supply to work. Works immediately when connected to your device (without Power Delivery)

Environmental conditions

• Operating temperature: 0° to +70°C
• Storage temperature: –10° to +55°C
• Humidity: 10% to 90%, RHL non-condensing

Physical parameters

• Housing Type: Aluminum
• Dimensions: 16,4 x 6,4 x 1,9 cm
• Weight: 174 g

Compliance (compliance standards)

• Safety: CE
• Environmental: RoHs, FCC

Included:

• Docking station
• USB Type-C to USB Type-C Cable (100 cm)
• User manual
