Belaidis prieigos taškas TP-LINK EAP683UR, 2 vnt., biurui ir namams

Trumpai apie prekę

Prekė: Belaidis prieigos taškas TP-LINK EAP683UR, 2 vnt., biurui ir namams. Kategorija: Belaidžiai maršrutizatoriai ir prieigos taškai.

• Gamintojas: TP-Link
• Modelis: EAP683 UR
• Plotis: 220 mm
• Aukštis: 220 mm

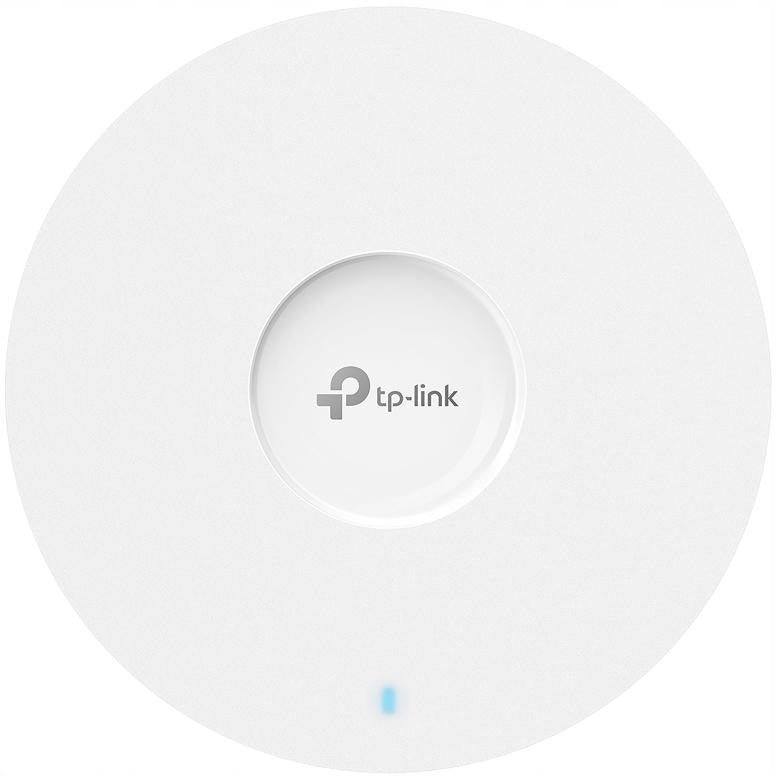

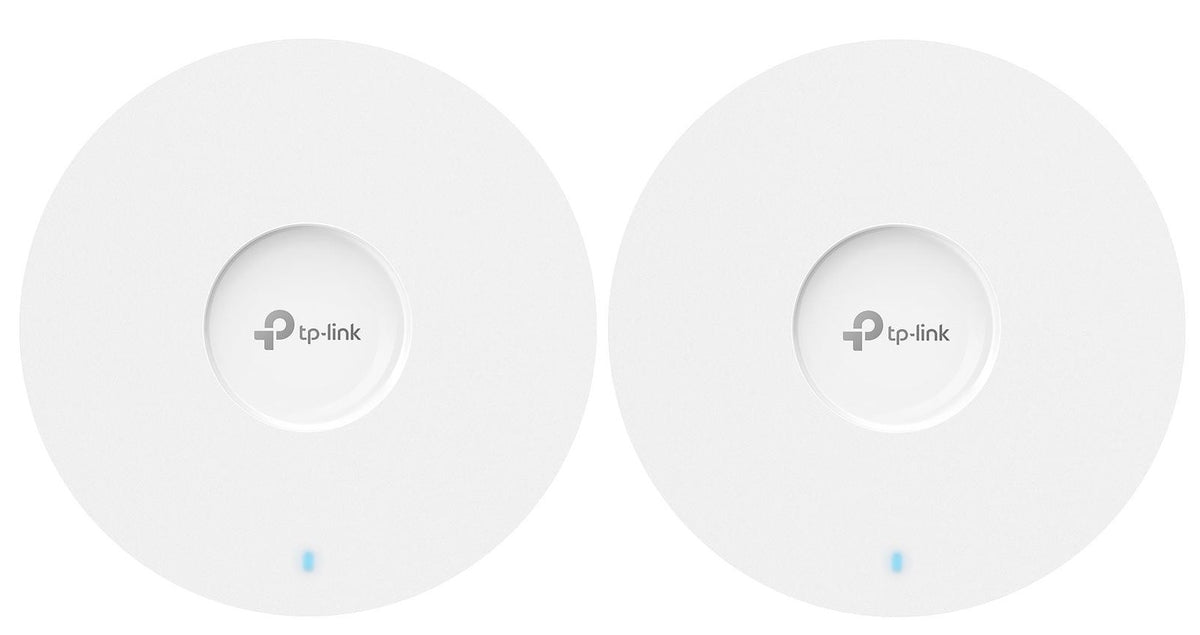

2x Access Point AP TP-LINK EAP683UR Home Access Point for Company Office

Key features:

• WiFi 6 AX6000: high bandwidth in two bands, up to 1148 Mbps in 2,4 GHz and up to 4804 Mbps in 5 GHz, which in total gives up to 5952 Mbps.
• Large range: built-in 4×4 MIMO antennas and high transmission power help cover more space with the signal.
• WiFi 6: support for HE160 and 1024-QAM supports high-performance transmission over a modern network.
• 2,5GE wired connection: high-speed uplink makes it easy to take advantage of wireless network capabilities without cable restrictions.
• SDN: integration with the platform enables centralized management and convenient control of network infrastructure.
• Network functions: Omada Mesh, smooth roaming, automatic channel selection and power regulation help maintain a stable network.
• PoE+ or DC power supply: support 802.3at PoE+ and DC power supply, power supply not included.
• Contents of the set: 2x (Access Point AP TP-LINK EAP683UR. )

This ceiling WiFi 6 access point in class AX6000 is used to expand the wireless network where high bandwidth and stable coverage count. It is designed for offices, conference rooms, service facilities, and places with multiple users where an older Wi-Fi network no longer provides smooth operation. Addresses speed drops, network congestion and uneven signal coverage, offering high performance in the 2,4 GHz and 5 GHz bands. With its Omada, Mesh, and roaming features, it makes it easy to build a consistent network in a larger space.

The device operates in the WiFi 6 (AX6000) standard, offering speeds up to 1148 Mb/s in the 2,4 GHz band and up to 4804 Mb/s in the 5 GHz band, which in total gives up to 5952 Mb/s. Built-in 4×4 MIMO antennas and high transmission power help achieve large range, which is important in hallways, open office spaces and halls. Support for WiFi 6 solutions such as HE160 and 1024-QAM increases transmission efficiency in modern client devices.

On the wired network side, there is a 2,5GE connection, which allows you to take advantage of WiFi 6 capabilities without the limitations of slower uplink. The access point integrates with the Omada SDN platform, which enables centralized management, also in a cloud environment. In practice, this means simpler implementation, consistent settings and better control over the network in the company or service facility.

In environments requiring continuous network access, features such as Omada Mesh, smooth roaming, automatic channel selection and power regulation are useful to help maintain stability and better match the network to radio conditions. This solution will work as a WiFi 6 access point to the office, school, service premises, and the network where you want to build uniform signal coverage.

The device is designed for ceiling mounting. It requires 802.3at PoE+ power supply or DC power supply to operate, with the power supply not included. Depending on the method of implementation, management in the Omada ecosystem may be used, which may require appropriate management infrastructure.

Key words: WiFi 6 access point, AX6000 ceiling access point, Omada SDN, Omada Mesh, WiFi roaming, 2,5GE port.

FAQ - Frequently Asked Questions

• What is this access point, and what is it used for? It is a WiFi 6 access point that extends wireless networking, improves coverage and bandwidth in multi-user locations.
• What speeds does WiFi 6 AX6000 offer? It supports up to 1148 Mbps in the 2,4 GHz band and up to 4804 Mbps in the 5 GHz band, which in total gives up to 5952 Mbps.
• Why is 4×4 MIMO important? Built-in 4×4 MIMO antennas help you achieve long wireless coverage and a more stable connection in demanding spaces.
• Does the device have a high-speed wired connection? Yes, a 2,5GE wired connection is indicated, which makes it easier to take advantage of WiFi 6 capabilities.
• What does integration with Omada SDN mean? It enables centralized network management, making it easy to set up, control, and scale across your business or facility.
• Can you build a Mesh network and use roaming? Yes, the device offers Omada Mesh and seamless roaming, which supports a unified network in a larger area.
• How do I power an access point? Supports 802.3at PoE+ power supply and DC power supply, power supply not included.

Step-by-step configuration: 1) Mount the access point on the ceiling in a place that provides the best signal coverage. 2) Connect the network cable to the wired infrastructure, including the 2,5GE connection. 3) Provide power supply, use 802.3at PoE+, or DC power supply. 4) Configure Wi-Fi network and operating parameters, including channel selection and power, as needed. 5) If you are using the Omada ecosystem, add a central management device and enable the required features such as Omada Mesh and roaming.

Do I need to buy additional products? Yes, depending on the power supply method, you need a 802.3at PoE+ source, such as a PoE+ switch, or a DC power supply, because the power supply is not included. For central management in Omada, if it is to be used, the appropriate Omada infrastructure may be required to control the network.

Gallery:

Specification:

• Device type: ceiling access point
• Wi-Fi standard: WiFi 6, AX6000
• WiFi speed 6: up to 1148 Mbps (2,4 GHz), up to 4804 Mbps (5 GHz), up to 5952 Mbps in total
• Working bands: 2,4 GHz, 5 GHz
• WiFi technologies 6: HE160, 1024-QAM
• MIMO: built-in 4×4 MIMO antennas
• Range: long range thanks to built-in 4×4 MIMO antennas, and high transmission power
• Wired port: 2,5GE
• Power supply: 802.3at PoE+, DC power supply
• Power supply included: no, power supply not included
• Management: integration with Omada SDN platform
• Functions: Omada Mesh, smooth roaming, automatic channel selection, power adjustment
• OFDM: long OFDM symbol

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Manufacturer	TP-Link
Parametry	Mode of operation	Access Point
Parametry	Internal modem	no modem
Parametry	Management	app
Parametry	Number of LAN (RJ-45) ports	1
Parametry	LAN port operating standard	10/100/1000 Mbps
Parametry	Antenna	built-in
Parametry	Width	220 mm
Parametry	Height	220 mm
Parametry	Depth	33 mm
Parametry	Product weight with unit packaging	1.4 kg
Parametry	EAN (GTIN)	8885020621938
Parametry	Manufacturer code	EAP683 UR
Parametry	Model	EAP683 UR
Parametry	Packaging status	original
Parametry	The highest standard supported	802.11ax (Wi-Fi 6)
Parametry	Certificates of conformity	CE
Parametry	Batteries included	no
Parametry	Wireless operation standard	802.11ax (Wi-Fi 6),802.11ac (Wi-Fi 5),802.11n (Wi-Fi 4),802.11g,802.11b,802.11a
Parametry	Band	2,4 GHz,5 GHz
Parametry	Additional features	Polish menu,hotel mode
