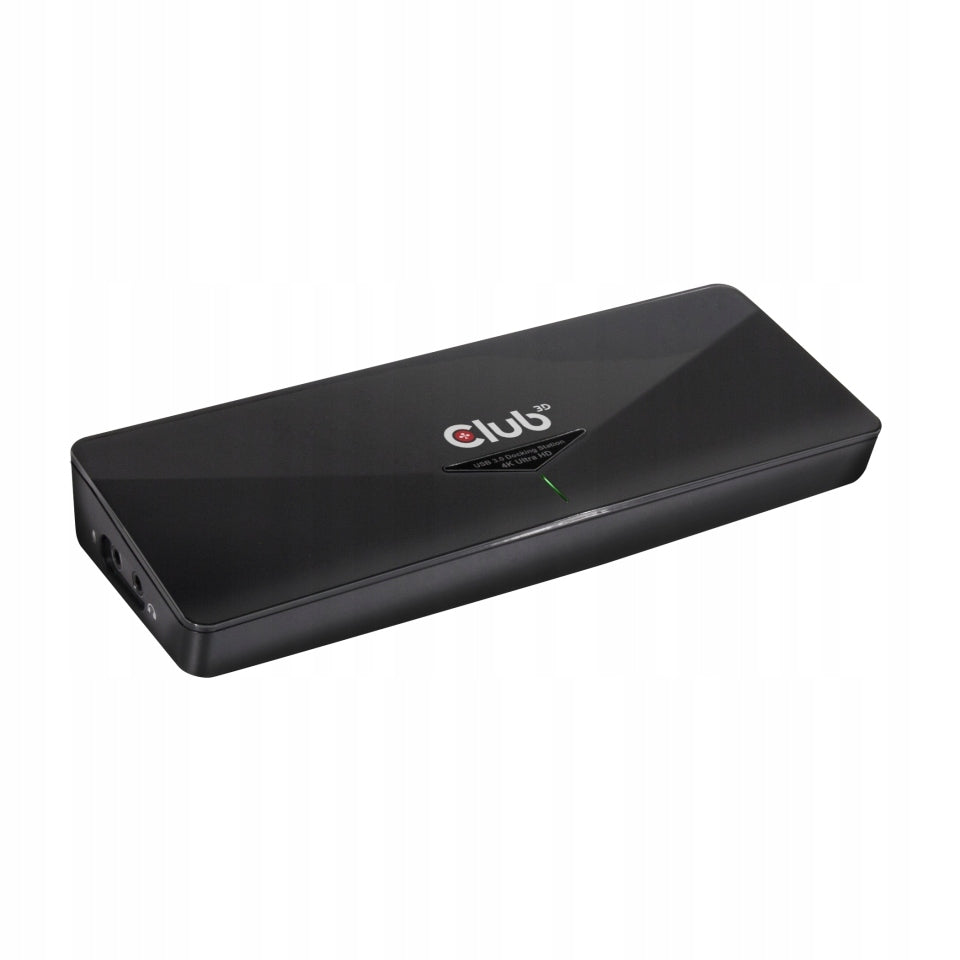

Adapteris CSV-3103D, USB-A į HDMI, DP, DVI, RJ45

Trumpai apie prekę

Prekė: Adapteris CSV-3103D, USB-A į HDMI, DP, DVI, RJ45. Kategorija: Dokavimo stotelės.

• Gamintojas: CLUB3D
• Modelis: JZZU20

• Universal docking station USB-A 3.1 Gen1 (former USB 3.0) to HDMI, DisplayPort, DVI-I, 3x USB 3.1 GEN1 / 1x Gigabit Ethernet, 1x 3.5mm minijack (2.1ch audio), 1x microphone connector
• It provides an ideal solution for extending a USB-A host port (PC/laptop/tablet, etc. )
• The HDMI connector supports 4K 30Hz
• Data transfer at 5Gb/s
• One of the USB ports supports BC1.2
• Provides fast charging.

The CSV-3103D is a universal docking station that is designed to meet all your USB 3.1 Gen1 connectivity needs. The docking station allows you to take advantage of super-fast data transfer (up to 5 Gbps) from USB peripherals, reducing cable clutter and providing connectivity to your notebook or tablet through a single USB 3.1 Gen1 connector.

Support for two monitors is possible thanks to the DisplayPort or HDMI outputs and the DVI-I output. Supports display resolutions up to 4K @ 30Hz for a single monitor setup or full HD @ 60Hz for a dual monitor setup. Offers separate connectors for speakers or headset and microphone. You can even charge your mobile phone via the BC1.2 fast charging port (three times faster than a standard PC USB 2.0 port).

Please note that the functionality of the dock directly depends on the functionality of the connected devices

Characteristics:

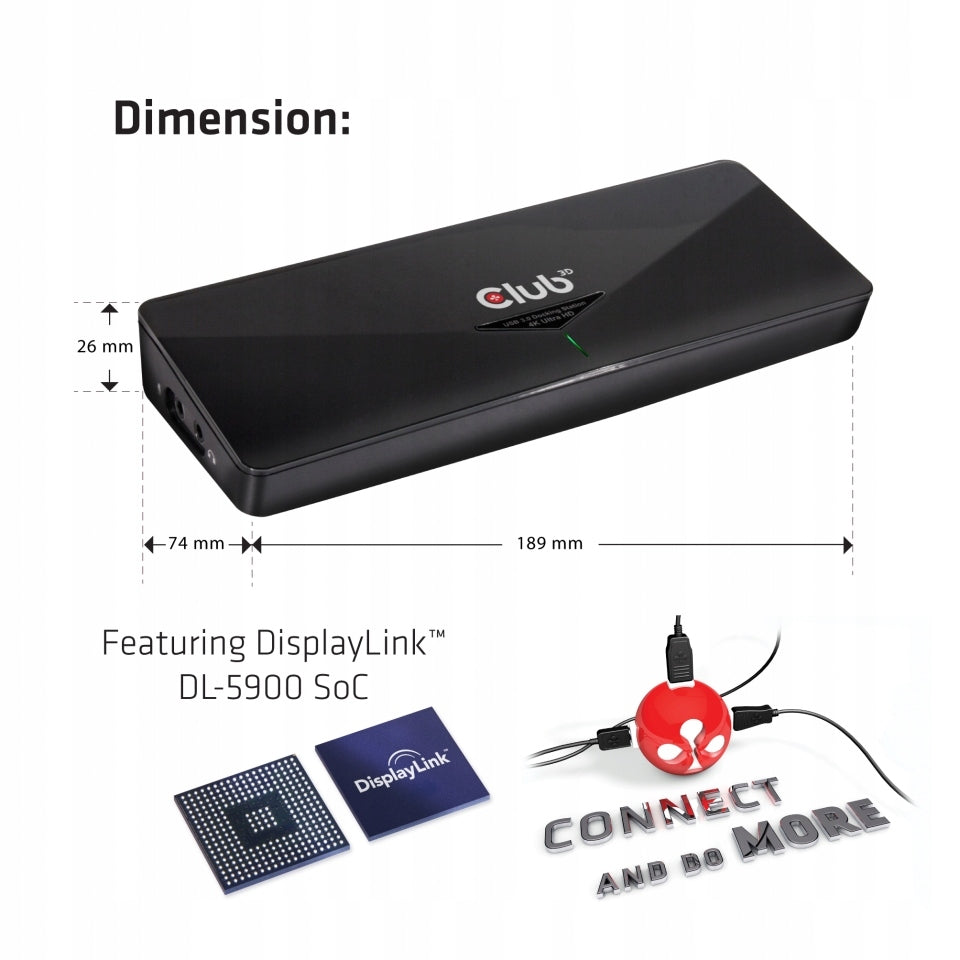

• USB 3.0 docking station featuring DisplayLink DL-5900 SoC with dual monitor support
• Input: USB 3.1 Gen1 (acc. old USB 3.0 nomenclature)
• Outputs: 1x HDMI, 1x DP, 1x DVI-I, 3x USB 3.1 GEN1 port, 1x 3.5mm minijack (2.1ch audio), 1x 3.5mm minijack microphone connector
• Maximum supported resolution: Single Display Configuration (DP or HDMI): Up to 3840 x 2160 @ 30Hz, Dual Display Configuration: Up to 2 x 1920 x 1200 @ 60Hz, DVI-I Output: 2048×1152
• Ability to clone the image on a second display or the extended desktop function
• RJ45 port with 10/100/1000 Gigabit Ethernet support
• BC1.2 charging support (only on one rear USB port)

Technical data

Interface : USB 3.1 Gen 1

Outputs: HDMI or DisplayPort / DVI / 3x USB 3.1 GEN1 / Gigabit Ethernet / Audio 2.1ch / Mic

Supported operating systems: Windows 10/8.1

Power consumption:

• Operating power: 14.43W
• Standby: 1.95W

Minimum computer requirements :

• Processor: Intel or AMD clocked at 2GHz or higher
• RAM: 2GB or more
• USB port: 3.1 Gen1
• 30 MB free disk space

Package Contents :

• 1x CSV-3103D
• 1x drivers on CD
• 1x USB cable
• 1x power adapter

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer code	JZZU20
Parametry	Manufacturer	CLUB3D
Parametry	EAN (GTIN)	8717249401070
