Belaidis variklis BetaFPV 1102, 18000KV, 37 mm, 1 vnt.

Trumpai apie prekę

Prekė: Belaidis variklis BetaFPV 1102, 18000KV, 37 mm, 1 vnt.. Kategorija: Dronai ir multicopteriai.

• Gamintojas: BetaFPV
• Modelis: 1102-18000KV

18000KV-37mm

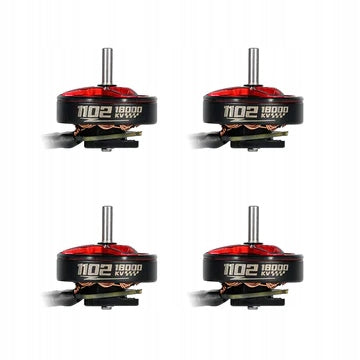

Introducing the new black and red 1102 Brushless Motors, designed for stronger thrust on 1S whoop drones. Available in two RPM versions: 18000KV or 22000KV, to suit different flying styles. These motors are lightweight at 2.79g each and fit most 75mm 1S frames, like the Meteor75 Frame.

Key Features

• Uses ball bearing technology to reduce friction, extend motor life, and improve efficiency.
• Solder-attached lead wires make repairs easier if disconnected.
• Exceptional power and thrust at a light weight of 2.79g, with a durable structure and high-quality materials for powerful performance.
• Features dynamic balance and crush-resistant damping bearings to effectively eliminate vibration.
• The 1102 18000KV brushless motors come with 37mm or 50mm cable length options. The 18000KV motors offer good efficiency, while the 22000KV version provides higher KV for more thrust, ideal for aggressive indoor FPV racing. Both the classic and new 18000KV versions perform identically.

Specifications

• Height: 15.2mm / 13.6mm (2022 version)
• Weight: 2.95g/pc (18000KV) / 2.79g/pc (22000KV)
• Shaft Diameter: 1.5mm
• Shaft Length: 5mm
• Motor Mount Holes: 3-M1.4-φ6.6
• KV (rpm/V): 18000KV / 22000KV
• Input Voltage: 1S Lipo
• Plug and Cables: Micro JST-1.25 3-pin connector with 28AWG cables

1102 18000KV or 22000KV Brushless Motors

The 1102 18000KV Brushless motors are the standard motors for the Cetus Pro and Meteor75 (1S HD Digital VTX). They offer excellent efficiency for longer flight times, perfect for FPV cruising. The 1102 22000KV has a higher RPM and quicker response, allowing the drone to take off with more power at lower throttle. This makes it more aggressive and powerful for FPV racing. If you're using 1102 18000KV motors on your 75mm whoop drone, upgrading to 22000KV is a great option.

| Feature | 1102 Motor | 18000KV Brushless Motors | 22000KV Brushless Motors | |---|---|---|---| | Application | Cruising | Racing | More powerful for racing | | Weight | 2.95g/pc | 2.79g/pc | | Thrust | 40.6g (GF-1635-3B) | 46.3g (GF-1635-3B) | | Efficiency | 2.11g/w (GF-1635-3B) | 1.90g/w (GF-1635-3B) |

Recommended Parts

• Battery: BT2.0 450mAh 1S Battery
• Frame: Meteor75 Frame
• Propellers: 40mm 3-Blade Props
• Screws: Meteor Series Motor Fixing Screws Pack (40PCS)
• Flight Controller: F4 1S 5A FC / F4 1S 12A AIO Flight Controller

Package Includes

• 1 * 1102 Brushless Motors (18000KV or 22000KV)
• 1 * Pack of M1.4*4 Screws

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Brand	BetaFPV
Parametry	Model	1102-18000KV
Parametry	EAN (GTIN)	726980976288
Parametry	Manufacturer code	1102-18000KV
Parametry	Batteries included	no
