Tinklo jungiklis 5 portų LAN RJ45, 10/100Mb/s

Trumpai apie prekę

Prekė: Tinklo jungiklis 5 portų LAN RJ45, 10/100Mb/s. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: no brand
• Modelis: 24102200007311

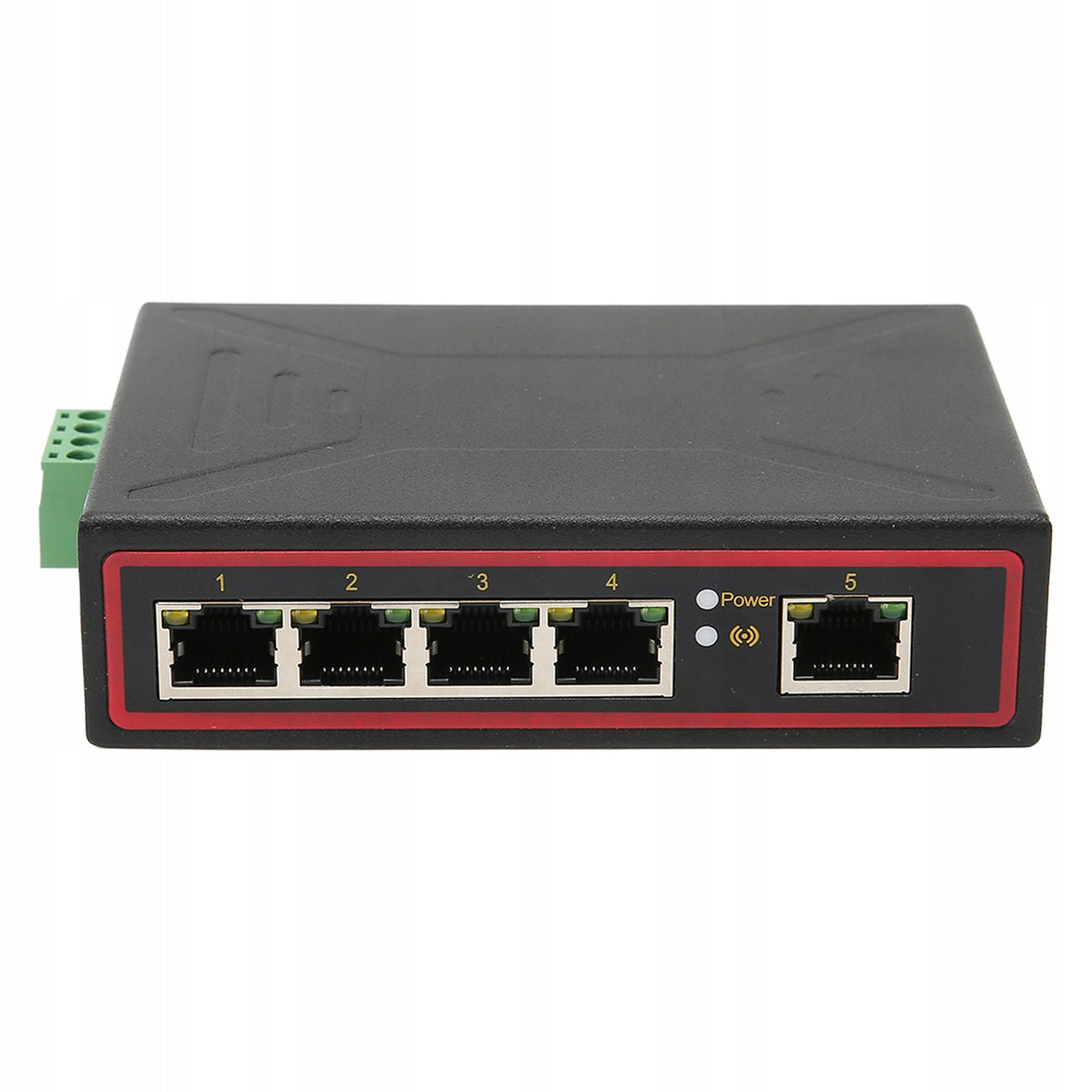

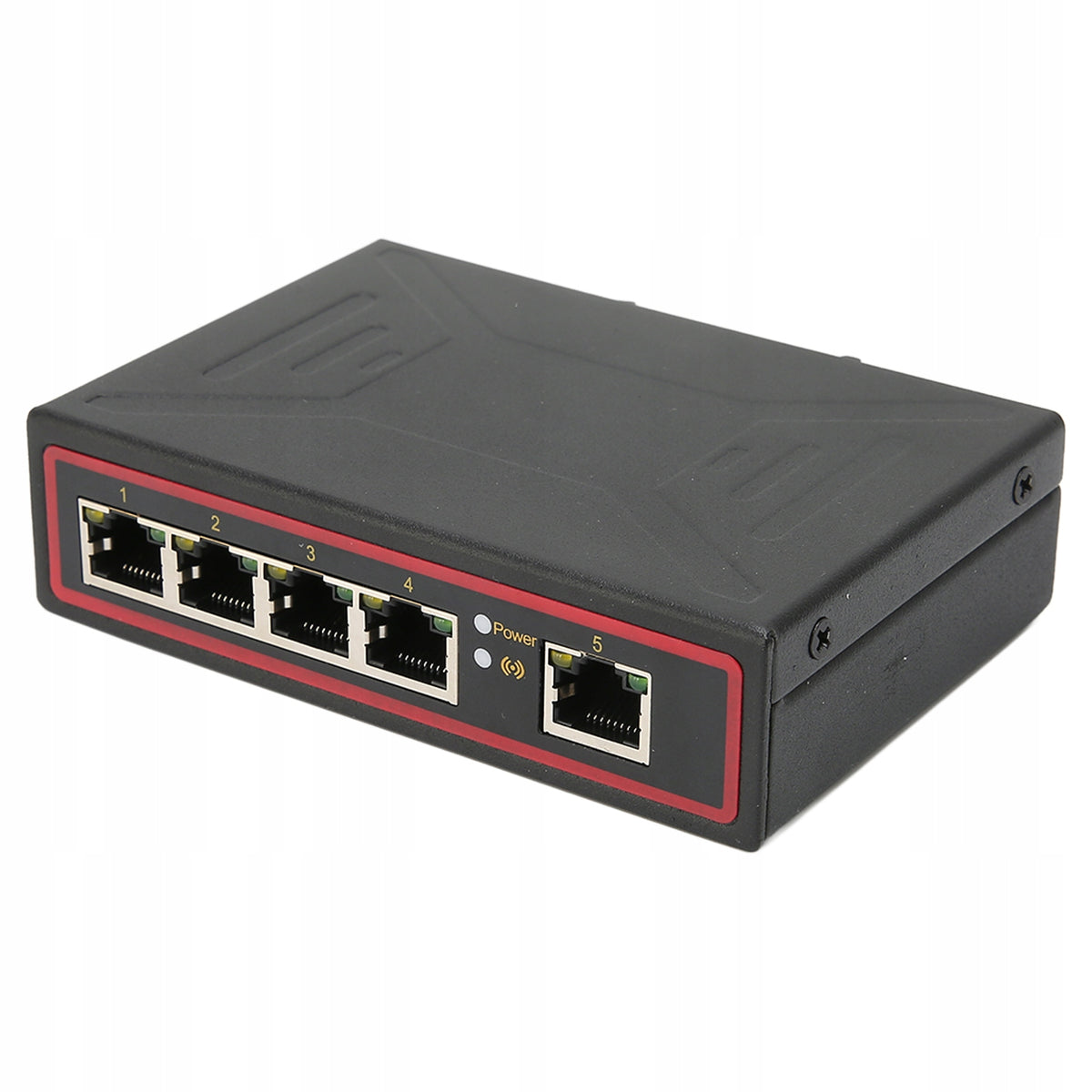

5 Port Ethernet Din Rail Mounting Rail Assembly Industrial Assessment Design Redundant Power Supply Fast Ethernet Rail Switch din

Fture 1. 5 Ports: Ethernet Din Rail Switch has 5 high speed Ethernet ports, also 5 10/100m automatic adaptive RJ45 ports.

2. Industrial Assessment Design: 5 -Port DIN Ethernet rail switch for delivering fast and reliable connections in harsh industrial environments, supporting a wide range of DC5V - 58V power supplies.

3. Rail Din: The 5 -port Fast Ethernet switch is equipped with an integrated DIN rail for mounting the DIN rail.

4. Redundant Power Supply: 5 Dual Power Input Port Switch Provides redundant power supply with overload current protection.

5. Extreme Temperature Switch: Hardened metal housing, designed to withstand high vibration, shock and suitable for harsh environments in a wide temperature range (-40~85C).

Specification Position type: 5 ports Ethernet DIN rail switch din.

Material: Aluminum Alloy

Internet Standards: IEEE 802.3 、 IEEE 802.3U 、 IEEE 802.3X 、 IEEE802.3az

Connection port: 5 10/100m adaptive RJ45 ports

Transmission rate: 10/100 Mbps (peny duplex/post duplex)

Forwarding speed: 10 Mbps/14880pps 100 Mbps/148800pps

Indicator world: power, signal improvement, connection status, Internet speed indicator

Product Size: approx. 118 x 80 x 30 mm / 4,6 x 3,1 x 1,2 inches

Power Supply: DC5V-58V/1,5W (maximum)

Operating temperature40~85

Storage temperature40~85

Vibration: 5~90 non-condensation

Download List of 1 x 5 Ethernet Ports Din Rail Switch1 X Operating Manual
