Tinklo jungiklis 2x PoE, skirtas 9 ATTE IP kameroms, modelis 9-11-E

Trumpai apie prekę

Prekė: Tinklo jungiklis 2x PoE, skirtas 9 ATTE IP kameroms, modelis 9-11-E. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Atte
• Modelis: IP-9-11-E

Product code: IP-9-11-E

PoE switch for 9 IP cameras, in ABOX-E internal housing, with 96W power supply, unmanaged, 10 ports 10/100Mbps (9xPoE + 1xUplink), electronic fuses, Long Range mode, IP-9-11-E type

Most important features and functions:

• possibility of powering 9 PoE 802.3at/af or PASSIVE receivers
• possibility of data transmission at 280m (in Long Range mode)
• electronic fuse independently for each PoE channel (auto return)
• possibility of switching off the power supply on selected PoE ports
• clear, optical signaling of power supply and data transmission
• up to 70W of power on LAN_5 PoE IN/OUT port
• up to 40W of power on other PoE ports
• easy and quick start-up without the need to configure parameters
• high efficiency of the power supply module (>90%)
• easy and quick installation service thanks to modular design
• easy expansion and scaling of the system by attaching additional xPoE / IP and IPB / IPUPS series switches
• installation of modules in any open part of the housing (raster system)
• possibility of maintaining the supply of cables inside the housing
• Cable culverts on the back of the housing
• distance to wall/mounting surface

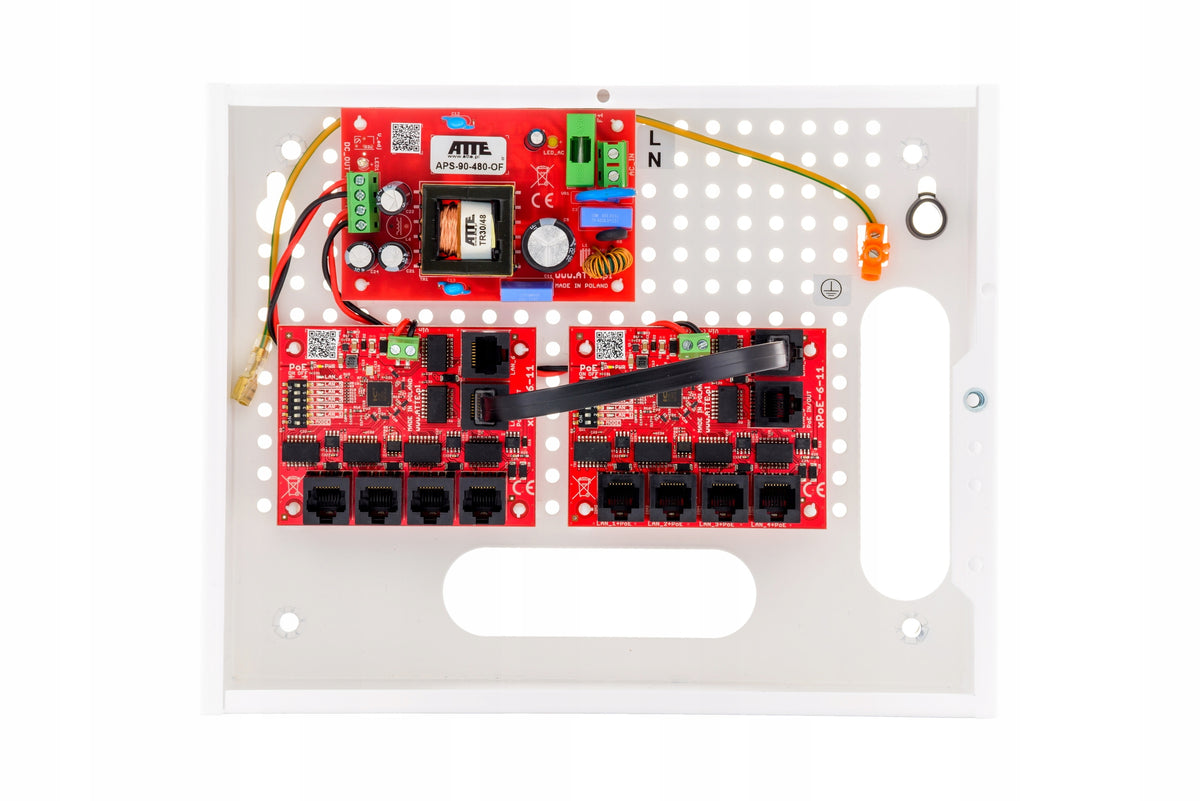

The set includes:

• 1x ABOX-E housing
• 1x APS-90-480-OF power supply
• 2x switch xPoE-6-11-OF

Electronic protection of PoE outputs ensures continuity of operation of the entire system when short-circuiting or overloading individual power branches, and automatic return of voltage after failure. The “Long Range” mode allows you to increase the transmission range to 280m using a standard UTP twisted pair cable.

Unmanaged PoE switches with IP series power supply are designed to work with IP cameras and other network devices powered in PoE 802.3at/af and PoE PASSIVE standards.

Interior enclosures of the ABOX series are a convenient solution to the problem of aesthetic installation of devices and termination of wiring inside buildings. All housings are made of steel sheet, powder coated in semi-matte, white color. Production using a modern technological line ensures the highest quality and precision. Each case is equipped with a screw closure, removable door and opening tamper. The models available in the offer have a special hole in the pitch of 10,8mm. It is compatible with the mounting hole spacing of built-in modules. The system solution allows for vertical or horizontal installation of selected devices in any open part of the housing.

Technical data:

• LAN ports 10 RJ45 10/100Mbps (9xLAN+PoE, 1xUplink)
• Supported PoE receivers (standard / power max) 802.3af - up to 15,4W LAN_1...LAN_5 802.3at - up to 30W LAN_1...LAN_5 PoE PASSIVE - up to 70W LAN_5 / up to 40W LAN_1...LAN_4
• PoE outputs (standard / power mode) LAN_1...LAN_5 PoE PASSIVE, mode B (4,5+) (7,8-)
• PoE output protection (overcurrent / short circuit) LAN_1...LAN_4 0,75A / electronic (auto-return) LAN_5 1,25A / electronic (auto-return)
• Microswitches SW1 switch 1 "MODE" - switch mode switches 2...6 "PoE ON/OFF" - PoE power supply on LAN_1 ports...LAN_5
• Operating mode "Standard" switch 1 "MODE" in position OFF LAN_1...LAN_6 - range up to 100m (10/100Mbps)
• Operating mode "Long Range" switch 1 "MODE" in position ON LAN_1...LAN_4 - range up to 280m (10Mbps) LAN_5...LAN_6 - range up to 100m (10/100Mbps)
• AC adapter (type/type) SMPS/APS-90-480-OF switching
• Power supply output protection (overcurrent / short circuit) 9A, electronic (power supply restart may be required after short circuit)
• Thermal protection of TSD (thermal shutdown) 130°C power supply, needs restart
• Power Supply Input Voltage Range / Input Protection 180...240VAC / T3,15A Fuse F1
• Power Supply Output (Continuous) 96W
• Power Supply Efficiency 92% @90W
• Power supply output voltage (PoE camera power supply) 48V +/-2%
• Wall Mount Housing, 6mm Mounting Holes
• Installation of devices inside the housing system hole 4,8mm in pitch 10,8mm
• Operating temperature range -10°C...+40°C
• Housing (type / material / color / protection / cable passes) ABOX-E / metal / white / tamper opening / back of housing, distance to the wall
• Dimensions / net weight / degree of protection 250x200x85mm / 1,52kg / IP20

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Atte
Parametry	Product weight with unit packaging	1.52 kg
Parametry	Number of ports	9
Parametry	EAN (GTIN)	5902143690320
Parametry	Manufacturer code	IP-9-11-E
Parametry	Certificates of conformity	CE
