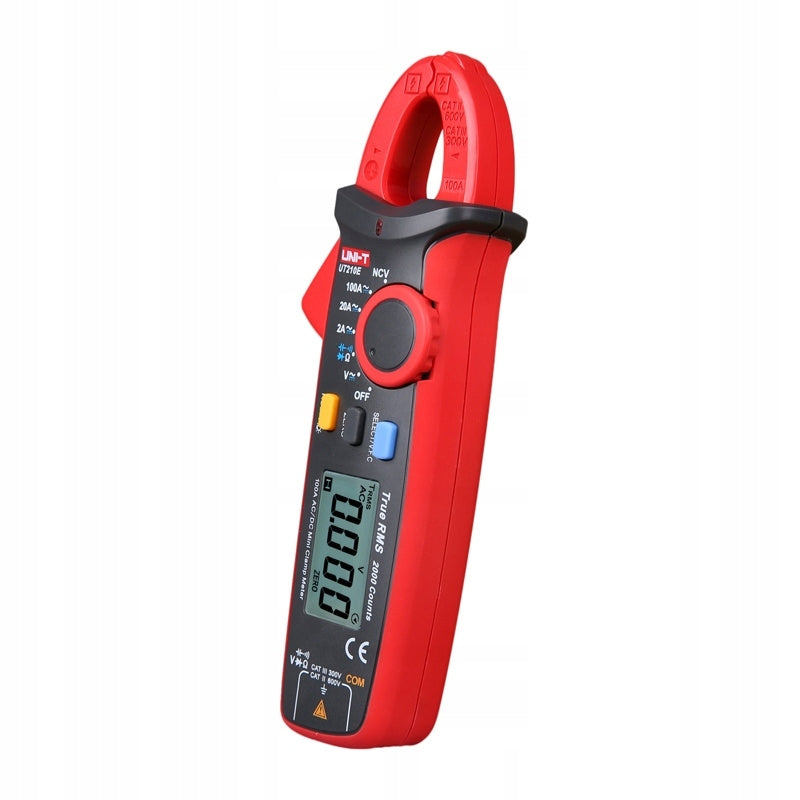

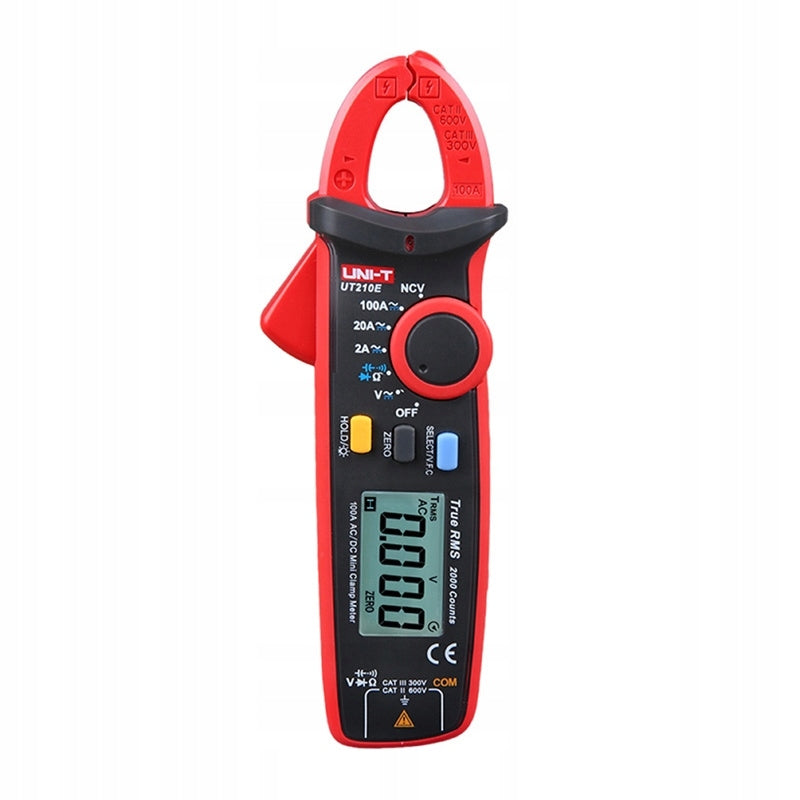

Srovės matuoklis UNI-T UT210E

Trumpai apie prekę

Prekė: Srovės matuoklis UNI-T UT210E. Kategorija: Multimetrai.

• Gamintojas: UNI-T
• Modelis: UT210E

Clamp multimeters differ from traditional ones in the ability to measure AC current without the need to interrupt the circuit. However, the production of meters only with this function would not be economically justified. Therefore, UNI-T equips its clamp multimeters with numerous measurement functions to make them more versatile.

Clamp meter UT210E allows you to measure AC/DC voltage, AC/DC current, resistance, and capacitance. The multimeter also has functions that facilitate everyday work with the device, such as True RMS measurement, non-contact detection of NCV or V.F.C. voltage, i.e. AC measurement for changing frequency.

Measuring ranges:

• DC constant voltage: 200 mV / 2 V / 20 V / 200 V / 600 V
• AC alternating voltage: 2 V / 20 V / 200 V / 600 V
• DC Current: 2 A / 20 A / 100 A
• AC Current: 2 A / 20 A / 100 A
• Resistance: 200 Ohm / 2 kOhm / 20 kOhm / 200 kOhm / 2 MOhm / 20 MOhm
• Capacity: 2 nF / 20 nF ~ 200 uF / 2 mF ~ 20 mF
• Diode test: approx. 3 V
• Checking circuit continuity

Additional features:

• Automatic/manual change of measuring ranges
• Freezing of the last indication
• Electric Field Detection (NCV)
• High frequency interference elimination filter that may affect measurement accuracy (VFC)
• True RMS measurement
• Instrument zeroing function
• Backlit LCD screen
• Automatic shut-off: after approx. 15 minutes
• Low battery indicator: =< 2,5 V
• Maximum reading: 2000

Specifications
