Saugumo kamera TP-LINK VIGI C540V

Trumpai apie prekę

Prekė: Saugumo kamera TP-LINK VIGI C540V. Kategorija: IP kameros.

• Gamintojas: Tp-Link
• Modelis: C540V

TP-LINK VIGI C540V CAMERA

TP-LINK

TP-LINK VIGI C540V CAMERA

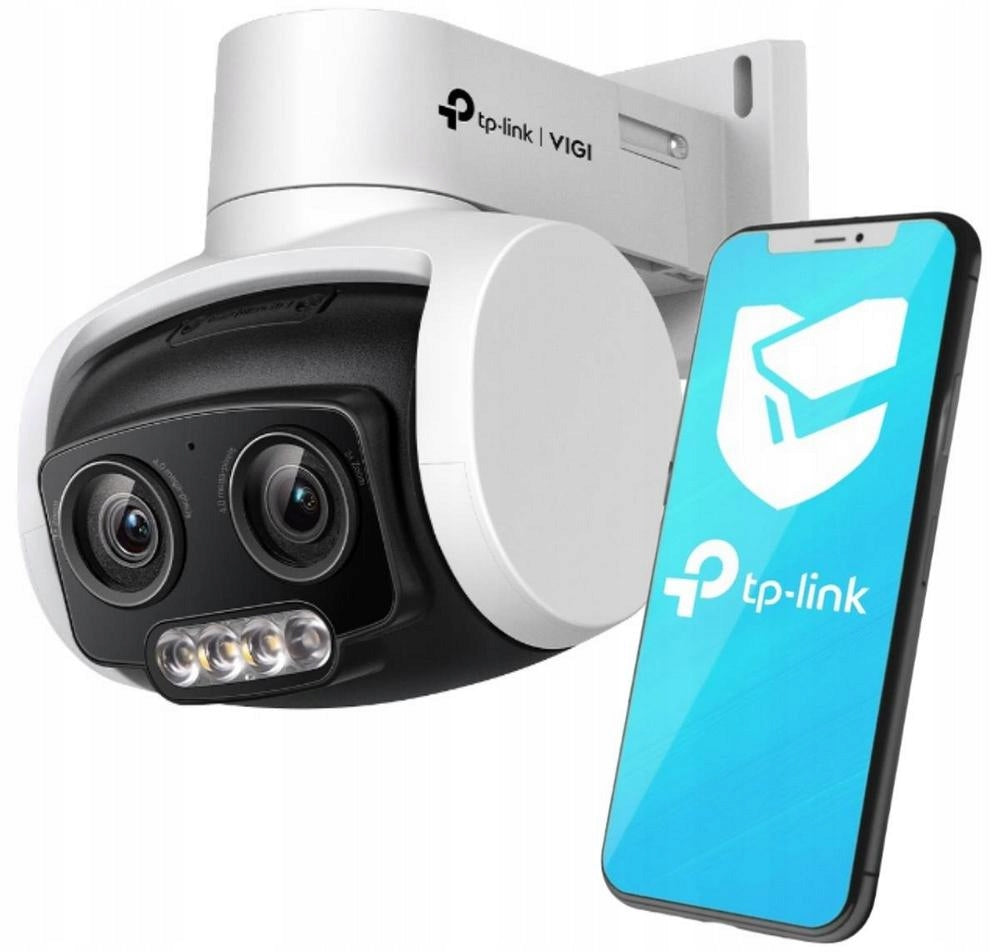

Model: VIGI C540V Outdoor IP camera with dual lens 4MPx 3xZOOM IP66 TP-LINK VIGI C540V - the most important features of the device:

• Excellent image quality - 4MPx
• Full colors for 24 hours - thanks to the sensitive transducer and 4 built-in spotlight LEDs
• 3 x ZOOM
• Distinguishing people and vehicles from other objects
• Smart Detection
• Effective pan and tilt
• Active protection and two-way audio
• H.265+ encoding
• Sealed housing: IP66
• 4 management methods: Web interface, NVR interface, VIGI app and VIGI Security Manager

TP-LINK VIGI C540V 4MPx Outdoor Full Color Dual Lens Varifocal Pan & Tilt Network Camera - Specifications:

• Image sensor: 1/3” Progressive Scan CMOS
• Shutter speed: 1/3 to 1/10000 s
• Slow shutter: yes
• Sensitivity: 0.005 Lux; 0 Lux with IR/white light illumination
• Night mode: infrared filter
• Switch: Day/Night Day/Night/Auto/Schedule
• Zoom: mixed, 3x zoom
• Focal length: 4-12 mm (mixed zoom)
• Aperture: F1.6
• Field of view: horizontal: 84°, vertical: 46°, diagonal: 100°
• Lens holder: M12*P 0.5
• Lens tilt angle: roll 0° to 332°, tilt 0° to 120° Lens rotation speed: rotation speed - adjustable from 8° to 44°/s, default speed - 44°/s
• Tilt speed: adjustable from 8° to 44°/s, default speed 44°/s
• Manual speed control: configurable from 8°/s to 35°/s Defined settings: 300
• Patrol Scan: Yes, up to 8 patrols, maximum 8 presets for each patrol
• Power-off Memory: Yes, PTZ and lens will automatically restore to previous state after power-off
• Parking Operation: Yes, Preset Settings, Patrol Scan
• 3D positioning: yes
• VIDEO RECORDINGS - max. resolution 2560 x 1440
• Main Stream: Frame Rate 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps; Resolution 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
• Substream: Frame Rate - 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps; Resolution 640x480, 352x288, 320x240
• Bitrate Control: CBR, VBR
• Video compression - main stream: H.265+/H.265/H.264+/H.264
• Substream: H.265/H.264
• H.264 Type: Main Profile/High Profile
• H.264+: Main stream supported
• H.265 Type: Main Profile
• H.265+: Main stream supported
• Video bitrate: main stream - 256 Kb/s to 4 Mb/s, sub stream: 64 Kb/s to 512 Kb/s
• ILLUMINATION - infrared diode number: 1
• Range: 30m
• Wavelength: 850nm
• White LED number: 3
• Range: 30m
• Lighting Control: Auto/Schedule/Always On/Always Off
• Manual angle adjustment - range: pan 0° to 332°, tilt 0° to 120°
• Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, IR Overexposure Prevention, HLC set by client software
• Image correction: BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range (WDR): DWDR
• SNR: ≥ 52 dB
• Image parameter switch: yes
• Privacy Mask: Up to 4 masks
• ROI: 1 Region
• OSD Settings: Yes

• Audio: Yes
• Motion detection: Yes
• Network interface: RJ45(10/100/1000Mbps)
• Image quality: 4 Mpx/2K
• Angle of view: 79°
• Protection class: IP67
• Housing color: White Black
• Lens: Motozoom
• Support for memory cards: Yes
• WiFi support: No
• Reading LPR/ANPR license plates: No
• Focal lens: 4 mm
• Type of sensor: Progressive Scan CMOS
• Resolution: 2560x1920
• Camera resolution: 4MPX (2K)
• Termowizja: No
• Camera type: External/Internal
• Housing type: Rotating
• Illuminator type: Dual light (IR + LED)
• Built-in speaker: Yes
• Built-in microphone: Yes
• Built-in lens: Yes
• Built-in infrared reflector: Yes
• Visibility at night: 30
• Transducer size: 1/3''
• Range of illuminator: 30 ~ 40 m
• Optical Zoo (PTZ): ≤5x
