PCIe korpusas StarTech Thunderbolt 3 PCI Express 3.0 plėtimo modulis

Trumpai apie prekę

Prekė: PCIe korpusas StarTech Thunderbolt 3 PCI Express 3.0 plėtimo modulis. Kategorija: Dokavimo stotelės.

• Gamintojas: StarTech
• Modelis: 2TBT3-PCIE-ENCLOSURE

⭐ EXPAND THE CAPABILITIES OF YOUR COMPUTER

Add external PCI Express slots to your computer or laptop with a Thunderbolt 3 or 4 port. This expansion enclosure from StarTech allows you to connect specialized PCIe cards, such as video capture cards, high-speed network cards or NVMe drives. Get professional capabilities on any Thunderbolt device.

✨ KEY ADVANTAGES

✅ Adds two external PCIe 3.0 x16 slots to a computer with Thunderbolt 3/4.

✅ Provides a total bandwidth of 32 Gbps (up to 21,6 Gbps per socket).

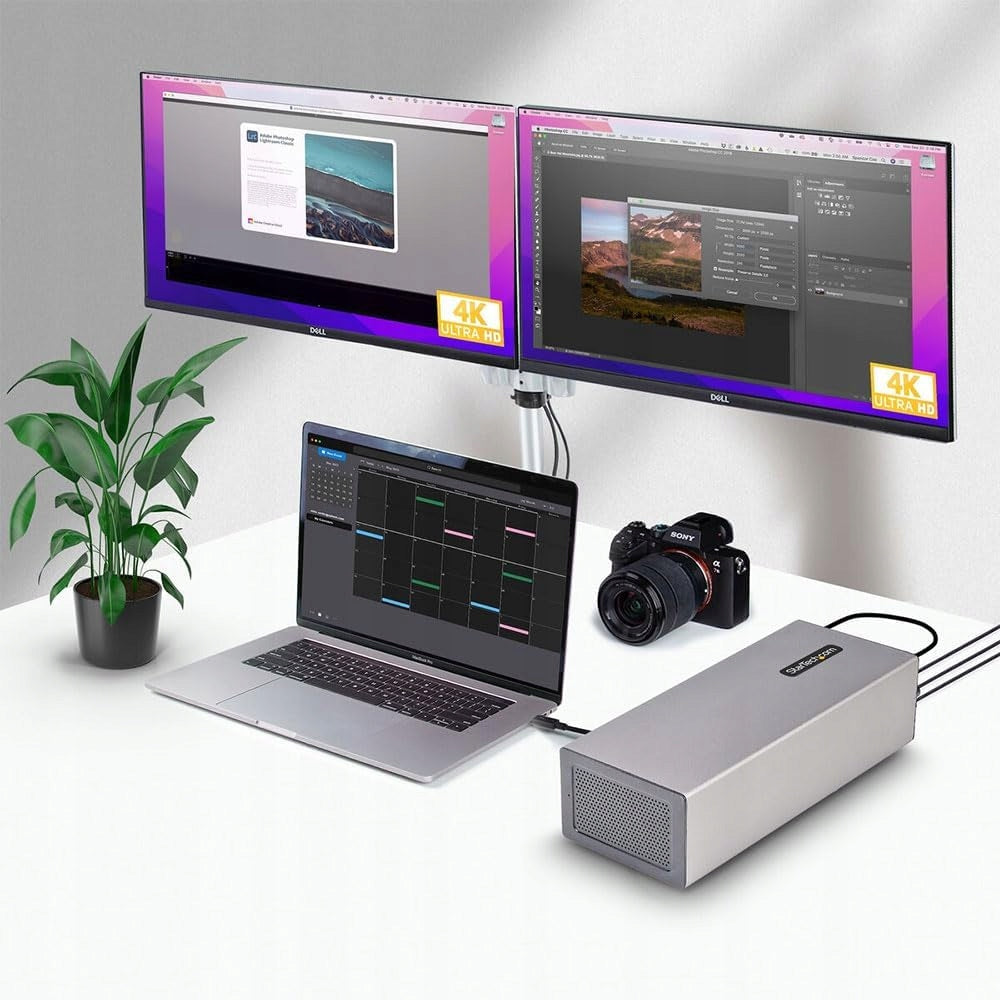

✅ Allows you to connect 8K or 5K 60Hz monitors and dual 4K 60Hz monitors.

✅ Tool-free aluminum construction makes it easy to install cards.

✅ Integrated fan provides active cooling and stable operation.

✅ Compatible with macOS, Windows and Linux without the need to install drivers.

⭐ EFFICIENCY AND FLEXIBILITY

The enclosure offers powerful capabilities with two PCIe 3.0 x16 slots with a common bandwidth of 32 Gbps. You can install cards up to 20,3 cm long, and the device will provide power up to 25 W per socket. Additional SATA connectors allow you to deliver up to 40 W per card, which guarantees stable operation of even the most demanding components.

⭐ APPLICATION

☑ Connecting professional cards for video recording

☑ Expansion with high-speed fiber or Ethernet network cards

☑ Installation of additional high-speed NVMe drives

☑ Connect FireWire cards, sound cards and other PCIe cards

⚙ TECHNICAL PARAMETERS

• Manufacturer: StarTech
• Host interface: Thunderbolt 3 / 4
• External connectors: 2x PCIe 3.0 x16 slot, 1x DisplayPort 1.4, 2x Thunderbolt 3 USB-C
• Capacity: 32 Gbps
• Maximum card length: 20,3 cm
• Power Supply: Up to 25W per socket (up to 40W with additional SATA power supply)
• Video support: Up to 8K 60Hz
• Cooling: Built-in fan
• Compatibility: macOS, Windows, Linux

Frequently Asked Questions (FAQ)

✅ Does the enclosure support graphics cards (GPUs)?

No, this enclosure is not designed to support external graphics cards (eGPUs).

✅ Do you need drivers to operate the enclosure?

The enclosure is driverless and works with macOS, Windows and Linux. However, some expansion cards installed in it may require you to install your own drivers.

✅ Can I connect two monitors at the same time?

Yes, using DisplayPort 1.4 and a second Thunderbolt 3 port, you can connect two monitors at resolutions up to 4K 60Hz.

Specifications
