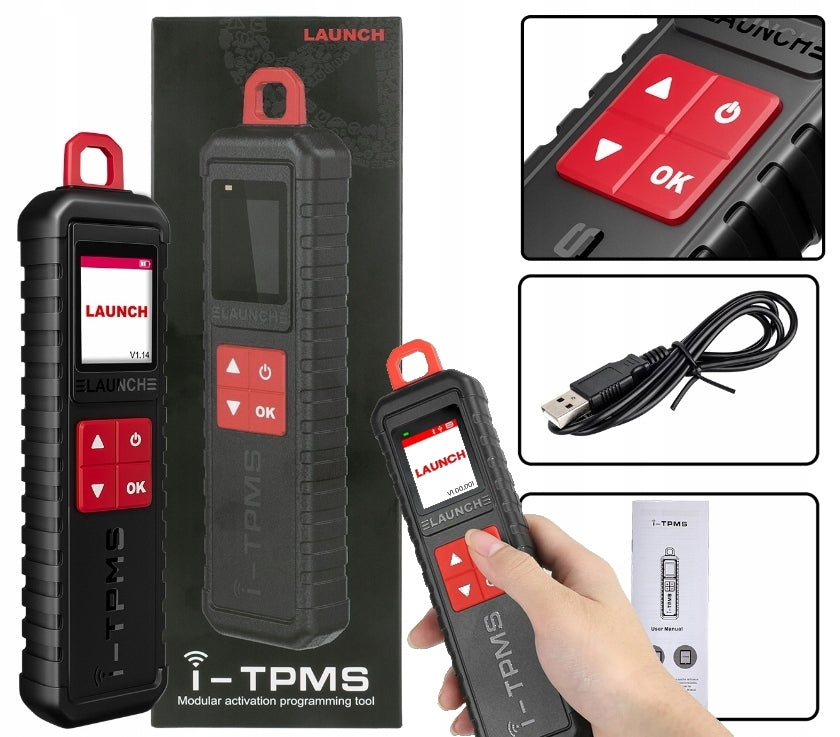

Padangų slėgio matuoklis ir programatorius LAUNCH i-TPMS X431 TSGUN

Trumpai apie prekę

Prekė: Padangų slėgio matuoklis ir programatorius LAUNCH i-TPMS X431 TSGUN. Kategorija: Slėgio jutikliai.

• Gamintojas: Launch
• Modelis: X431 TSGUN iTPMS Czujniki Ciśnienia w Kołach

Launch X431 iTPMS is a professional diagnostic tool for comprehensive service of tire pressure monitoring systems (TPMS). The device allows for diagnostics, activation, programming and relearning of sensors in cars of many brands. Thanks to its wide compatibility, simple operation and solid construction, it improves everyday work

• TPMS support for multiple vehicle brands
• Diagnostics, activation and programming of TPMS sensors
• Sensor relearning function after wheel replacement
• Quick and easy operation
• High accuracy of operation
• Intuitive menu in Polish
• Solid, professional construction
• Online updates – expansion of the database of supported models
• Perfect for workshops and tire repair shops
• Supports 315 MHz and 433 MHz systems

The device works with the LAUNCH i-TPMS application or with LAUNCH X431 series devices

Launch X431 i-TPMS works together with LAUNCH diagnostic devices and allows you to easily service, check, activate and program TPMS sensors. This makes servicing the tire pressure monitoring system quick and convenient.

The device can also be used alone. Just install the free LAUNCH i-TPMS APP on your smartphone or tablet to use its basic functions without connecting a diagnostic tester.

Downloading the i-TPMS app (for Android smartphone users only)

For Android smartphone users, scan the following QR code or the QR code on the back of the i-TPMS device to download and install the i-TPMS app on your phone.

Launch X431 i-TPMS is a professional TPMS system service tool that provides complete diagnostics and service of tire pressure sensors. Device:

• Activates all universal TPMS sensors
• Reads sensor data: ID, tire pressure, temperature and battery status
• Reads and clears TPMS trouble codes , allowing you to quickly detect problems
• Compares sensor and ECU data, immediately pinpointing system faults
• Performs full diagnostics and sensor relearning using the LAUNCH diagnostic device
• It can work independently after installing the free LAUNCH i-TPMS application, which allows for convenient work in the workshop or in the field

Thanks to these features, Launch X431 i-TPMS significantly improves the operation of TPMS systems, reduces service times and increases the professionalism of workshop services.

Vehicle Learning Mode (Manual Learn / Vehicle Learning Mode) - In this mode, the sensor learning process requires the vehicle to be placed in a special learning mode, according to the instructions displayed on the diagnostic device screen.

1. Select the appropriate learning mode for your vehicle in the device menu.
2. Follow the on-screen prompts step by step to assign each sensor to the correct wheel.
3. Once the process is complete, the sensors are correctly synchronized with the vehicle's TPMS module.

Automatic Learn / Drive Learn - For some vehicle models, the sensor learning process can be performed automatically while driving.

1. The device displays instructions regarding driving conditions and speeds to be maintained.
2. While driving, sensors are automatically detected and assigned to the appropriate positions.
3. Once you have finished driving, the TPMS system is fully synchronized and ready for operation.

OBD Relearn (direct registration of sensors via the OBD connector) - This method allows you to save sensor identifiers directly in the vehicle's TPMS module via the OBD connector.

1. First, activate all TPMS sensors using Launch X431 iTPMS.
2. Connect the diagnostic device with the included VCI to the vehicle's OBD connector.
3. Follow the on-screen instructions to complete the retraining process.
4. Once completed, all sensors are correctly assigned to the TPMS system and the vehicle is ready for operation.

1. Auto Generation User can quickly create sensor ID by clicking the “Auto” button. The system assigns identifiers itself, which speeds up the configuration of new sensors.
2. Manual Entry Launch X431 iTPMS allows you to manually enter the sensor ID, either original or different, according to your needs.
3. Copy via OBD Allows you to retrieve the sensor ID directly from the vehicle ECU. Simply connect the device to the OBD port and follow the on-screen instructions.
4. Copy by activation This mode requires prior activation of the original sensors. Once activated, the system allows you to copy identifiers and assign them to new or replaced sensors.

The set includes

1. LAUNCH X-431 i-TPMS tester device
2. USB cable
3. Original manufacturer's packaging
4. English manual

When using the device with LAUNCH testers, it works with LAUNCH X431 series models:

• X431 PRO MINI / PROS MINI
• X431 V V4.0 / PROS V1.0
• X431 PRO v5.0/ PROS v5.0
• X431 PRO TT/ PROS DYNO
• X431 V+ / PRO3S+
• X431 PRO3 ACE/ PRO3 APEX
• CRP919x / CRP 919E
• X431 PAD V / PAD VII
• X-431 EURO TAB II
• X-431 EURO PRO5
• X-431 EURO PRO4
• X-431 EURO TAB III

Specifications
