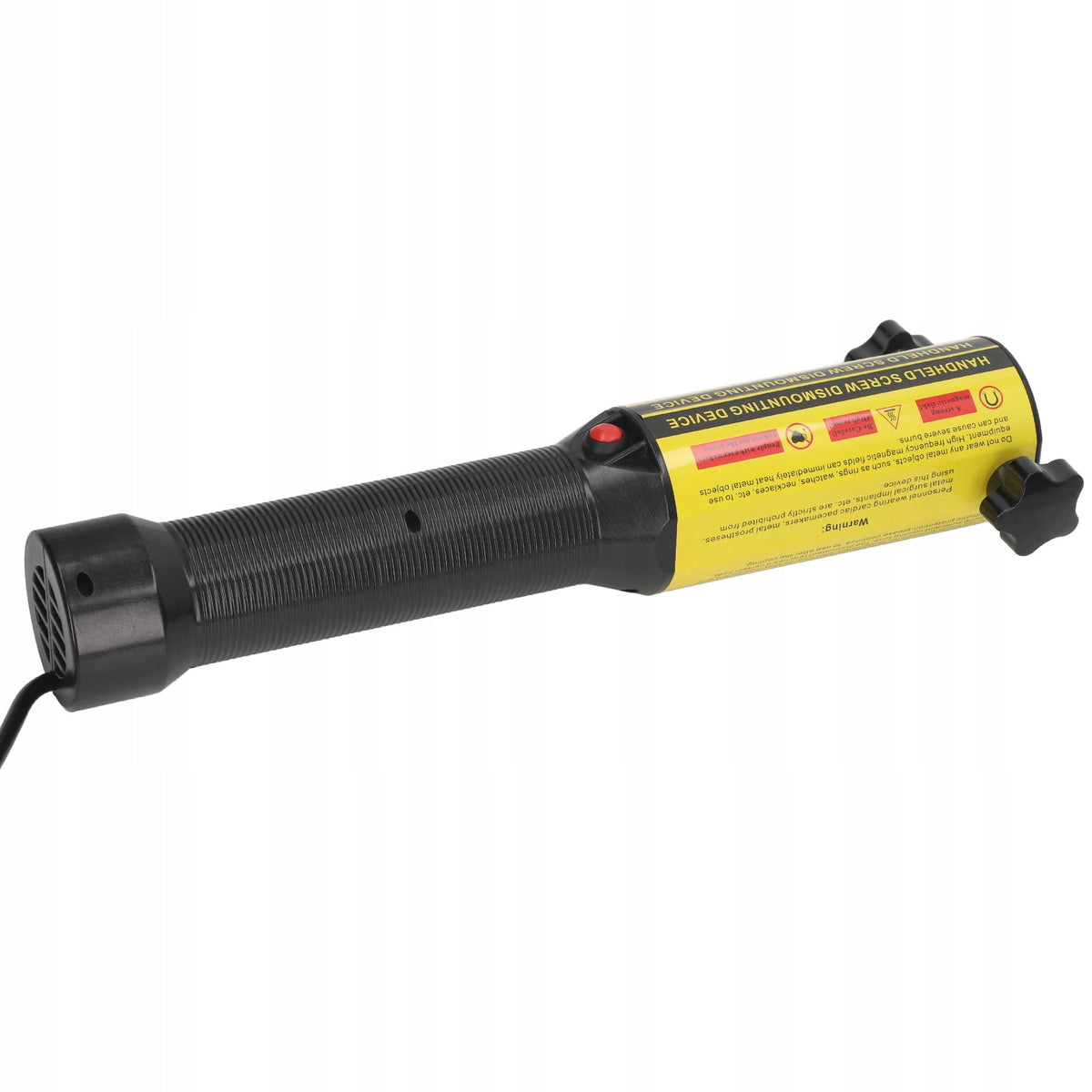

Nešiojamas indukcinis kaitintuvas automobiliams, 1200 W, 1 m

Trumpai apie prekę

Prekė: Nešiojamas indukcinis kaitintuvas automobiliams, 1200 W, 1 m. Kategorija: Oro šildytuvai.

• Gamintojas: no brand
• Modelis: AG260604057650

Function:

1. HIGH EFFICIENCY: Induction heating tools use electromagnetic fields to heat metals faster, more accurately and more efficiently than oxygen-acetylene systems. No open flame caused by heating to ensure the safety of the working environment

2. HIGH LIGHTING WORK AREA: Disassembly of induction heater screws with built-in LED at the end provides illumination of the work area even in the dark. You can better understand the progress of work and understand the state of the heated object

3. TOOL BOX AND 3 COILS: The magnetic induction heater kit comes with a tool box that is sturdy, cool and beautiful. You can take it with you whenever you are away from home to keep your studio clean and tidy. Equipped with 3 different coil sizes including 1 diameter 0,79 inch (20 mm), 1 diameter 0,98 inch (25 mm), 1 diameter 1,18 inch (30 mm). Different sizes can be customized for different ways of working, making the work run smoother

4. 3,0MM BRASS CORE: The induction coil set is made of 3,0mm diameter brass wire, which is more reliable than the 2,5mm diameter brass coil available in the market and can be heated to 800℃ for a long time without worrying about high temperature test. Energy saving effect is good, energy saving can reach more than 30% compared with electric heater used in current market

5. COOLING SYSTEM: Car flameless heating tools are equipped with cooling fans and overheating protection to heat up without damaging nearby thermal elements, extending the life of the equipment. Improved, thermally stable thermoplastic housing improves internal and external durability

6. WIDE APPLICATION: Magnetic induction heaters are mainly used to heat nuts and rusted bolts to loosen them, they can also be used for heat treatment of cars, machinery, various small metal parts such as gears, belts, bearings, etc.

Specification:

• Item Type: Magnetic Induction Heater Kit
• Energy saving effect: Energy saving up to 30%
• Operating Frequency: 50~60Hz
• Rated Power: 1200 W
• Heating temperature: 800 ℃
• Heating time 800 ℃: 5~40 seconds (the larger the object, the longer the time)
• Heating screw diameter: The coil can be covered, the coil can be adjusted freely
• Ambient temperature: -40 ℃ ~ 60 ℃
• Relative humidity: Atmospheric pressure: 86 KPa ~ 100 KPa
• Functions:

1. Soft start function in case of frequent start-up, long service life

2. IGBT overcurrent protection function

4. IGBT overheating protection function

5. Heating coil short circuit protection function

6. Heater circuit interruption protection function

7. Full bridge resonance circuit topology, strong interference resistance

8. Using high-performance IGBT driver chip, accurate drive and output mileage

9. Automatic identification of load and phase lock function, load side achieves higher power factor, provides circuit control in weak high efficiency induction area

• Weak sensitive areas work efficiently

10. Several electromagnetic heating regulators are installed in parallel on the same heating pipe without interfering with each other

11. Good energy saving effect: Compared with the current electric heater, energy saving can reach more than 30%

12. Easy installation: Can be connected to drum type and plate type and other structural induction coil

How to use:

• Remove the product and install it so you can use it.

List of packages:

• 1 x Induction Heater
• 3 x Heating Coil
• 2 x Screw
• 1 x Storage Box
• 1 x User Manual
