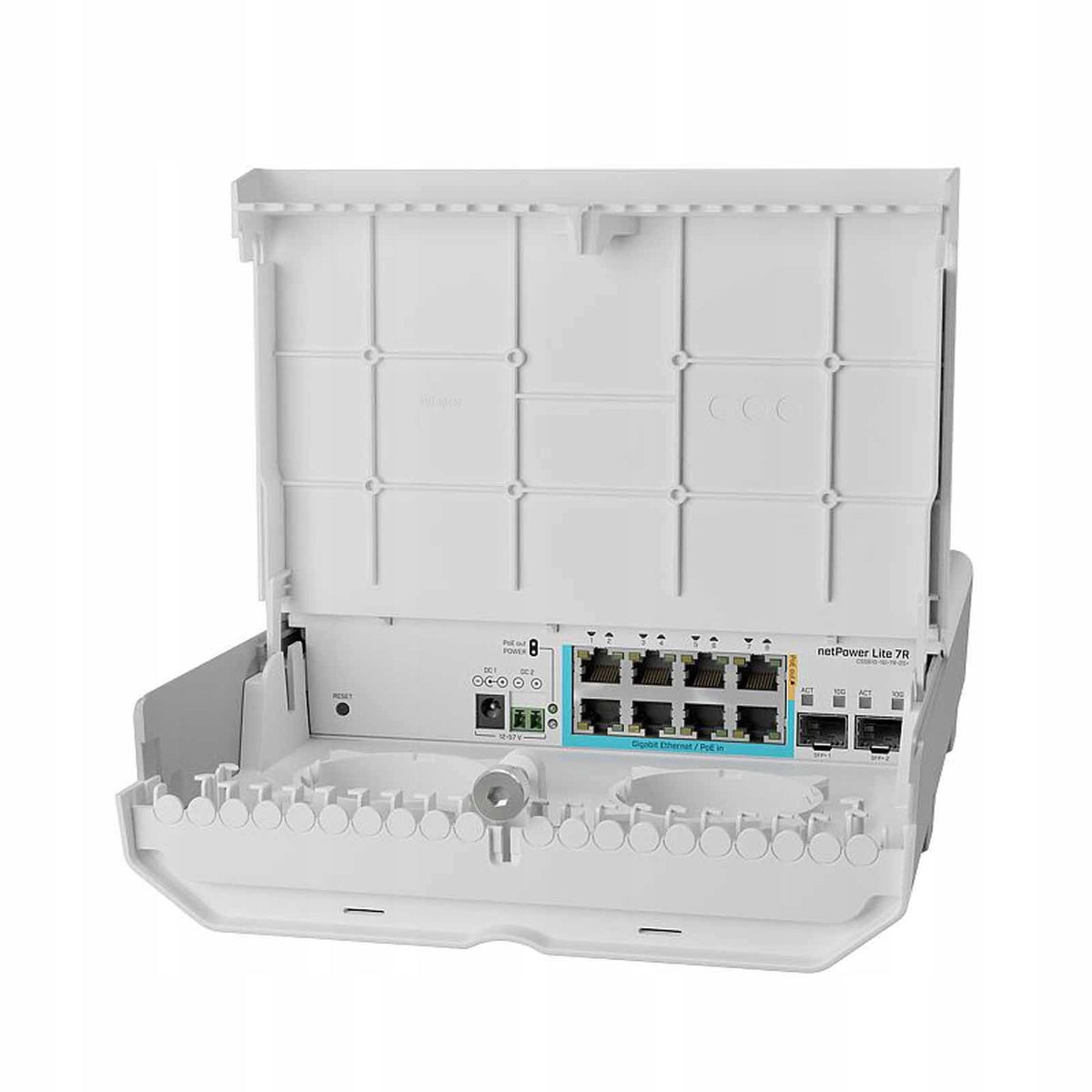

Lauko komutatorius MikroTik netPower Lite 7R CSS610-1Gi-7R-2S+, PoE, SFP

Trumpai apie prekę

Prekė: Lauko komutatorius MikroTik netPower Lite 7R CSS610-1Gi-7R-2S+, PoE, SFP. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: MikroTik
• Modelis: CSS610-1Gi-7R-2S+OUT

• 8x Gigabit Ethernet ports
• 2x 10G SFP+ slots
• 7x PoE (reverse PoE) inputs
• 1x PoE output
• possibility of use in the GPEN network
• SwitchOS
• enclosure adapted for use outside buildings
• DC socket and 2-pin connector for alternative power supply

MikroTik netPower Lite 7R, or Cloud Smart Switch CSS610-1Gi-7R-2S+OUT is a managed 8-port external switch with 7x PoE and 2x SFP+ return ports. It was designed for use in GPEN networks.

With the netPower Lite 7R switch, you can forget about expensive GPON base stations and optical splitters. GPEN is an alternative to passive GPON/EPON networks.

The switch is part of the MicroTika concept known as GPEN - designed to increase the speed and versatility of fiber optic networks while taking advantage of the advantages of Ethernet.

It is an easy to implement, cheap way for any Internet provider to deliver the Internet to individual apartments.

Note: no power supply included.

The netPower switch is equipped with 8x Gigabit Ethernet ports and 2x SFP+ slots for 10G fiber connections.

NetPower Lite 7R has 7 ports of inverted PoE - by mounting a switch with PoE output at the subscriber, netPower will always work when at least one client is connected. There is no need to run an additional cable with power supply.

Ethernet port 8 can power other PoE-enabled devices with the same voltage as used in the device.

There is also a DC socket and a 2-pin connector for alternative power supply.

The maximum non-blocking bandwidth is 28 Gbps, the switching capacity is 56 Gbps, and the packet forwarding speed is 41,7 Mp/s.

Outdoor housing allows you to install the switch in a variety of environments - from damp attics to elevator windows and poles.

Note: no power supply included.

• Interface: 8x Gigabit Ethernet 10/100/1000 Mbps, 2x 10 Gbps SFP+ slots
• PoE Input: Passive PoE
• PoE output: Port 8
• Memory size: 64KB
• Type of memory: FLASH
• Maximum output per port (input < 30 V): 600 mA
• Maximum output per port (input >30 V): 450 mA
• Max power consumption: 29 W (7 W without load)
• DC input: 3x (DC jack, PoE-IN, 2-pin terminal)
• Input voltage range: DC socket: 12 - 57 V DC, PoE: 12 - 57 V DC, 2-pin connector: 12 - 57 V DC
• Operating system: SwitchOS
• Dimensions: 304 x 212 x 71 mm
• Admissible operating temperature: From -40 to 70°C
• Certificates: CE/RED, EAC, ROHS

Specifications
