Komutatorius Hikvision DS 3E1106P EI/M

Trumpai apie prekę

Prekė: Komutatorius Hikvision DS 3E1106P EI/M. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Hikvision
• Modelis: DS-3E1106P-EI/M

166,54

56630

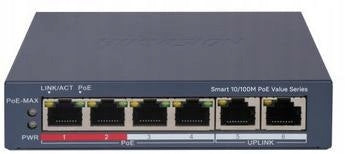

Switch Hikvision DS-3E1106P-EI/M

Model: DS-3E1106P-EI/M

Key features:

• 4 × 10/100 Mbps PoE ports and 2 × RJ45 10/100 Mbps ports
• Total PoE power budget: 45 W
• Support for 802.1Q VLAN - effective segmentation and network security
• PoE Watchdog function - automatic detection and restart of unresponsive cameras
• STP/RSTP support - prevention of loops in the network
• Cable diagnostics for quick fault location
• Long-range PoE transmission up to 300 m
• 6 kV surge protection

Technical specification:

Parameter

Description

Housing material

Metal

Net weight

0,27 kg

Gross weight

0,77 kg

Dimensions (W) × H. × D. )

121,1 mm × 27,6 mm × 83,1 mm

Operating temperature

0 °C to 40 °C

Storage temperature

-40 °C to 85 °C

Operating humidity

5% - 95% (non-condensing)

Relative humidity

5% - 95% (non-condensing)

Power supply

54 V DC, 0,92 A

Installation mode

Desk, Wall Mounted

Maximum power consumption

50 IN

Power consumption in idle mode

1,8 IN

Surge protection

6 kV

Network ports

4 × 10/100 Mbps PoE ports, 2 × RJ45 10/100 Mbps ports

MAC Address Table

2K

Switching bandwidth

14 Gbps

Packet forwarding speed

10,42 Mpps

Buffer memory

1 Mbit

PoE standard

IEEE 802.3af, IEEE 802.3at

PoE Power Pins

End-span: 1/2 (-), 3/6 (+)

PoE ports

Ports 1-4

Maximum power per port

30 IN

PoE capacity budget

45 IN

Long Range PoE Mode

Ports 1-4: up to 300 m (depending on camera and cable quality)

VIP ports

Ports 1-2 - Priority data transfer with limited bandwidth

Port isolation

Ports 1-4: isolation mode for increased network security

Principle of isolation

Ports in the same group do not communicate with each other

PoE Watchdog

Ports 1-4: Automatic detection and restart of unresponsive cameras

Link aggregation

Static port aggregation

Number of aggregation groups

Max. 2

Prevention of loops

STP (802.1D), RSTP (802.1w), disabled by default

VLAN

IEEE 802.1Q

Scope of ID VLAN

1-4094

VLAN Modes

Trunk, Access

Maximum number of VLANs

32

HPP management

One-click activation and remote management

HPP features

Port speeds, bandwidth usage, PoE consumption, topology, alarms, restart, Long Range mode, remote update

Management of the system

Web interface

DHCP Client

Supported (enabled by default)

Super IP

Fixed IP address: 10.180.190.200

Central management

Hik-Central Pro

Remote management

Hik-Partner Pro

Diagnostics of cables

Detection of cable gaps, short circuits and lengths

LLDP

IEEE 802.1ab

Port mirroring

Supported

EMC Compliance

EN 55032, EN IEC 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035

Security

IEC 62368-1, CE-LVD

Environmental compatibility

RoHS, REACH, WEEE
