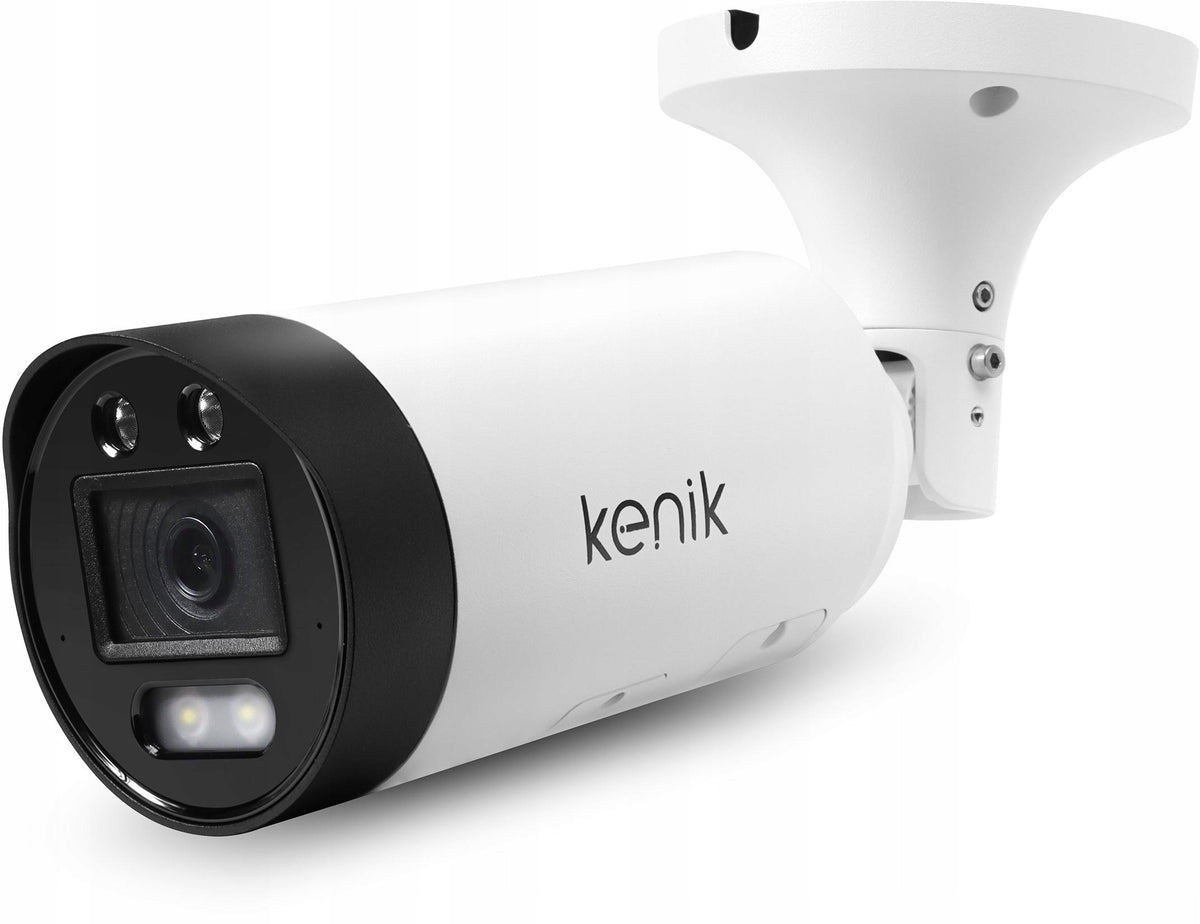

IP vaizdo kamera KENIK KG-5430TAS-ILCD

Trumpai apie prekę

Prekė: IP vaizdo kamera KENIK KG-5430TAS-ILCD. Kategorija: IP kameros.

• Gamintojas: KENIK
• Modelis: KG-5430TAS-ILCD

IP KENIK KG-5430TAS-ILCD ELLEKTROPOINT

Key features:

• 5MPX (2880x1620) resolution at 25fps
• H.265+/H.264+ compression
• WDR (120dB), day/night, BLC, HLC, ROI
• 2.8mm (F1.0) lens
• color image at night (Color Night Vision)
• Built-in microphone
• Dual Light (IR + Warm Light) up to 30m
• Red/blue LEDs
• MicroSD card reader up to 256GB
• Crossing the line, detecting an intruder, triggering an alarm by specific targets - human/vehicle (SMD + P.P), face detection, motion detection (human/vehicle object classification), image obscuration
• 3 streams
• I/O audio: 1/1
• Emergency I/O: 1/1
• Reset button
• Dual power supply 12V DC/PoE (802.3af)
• Enclosure with protection class IP67
• Supports ONVIF (Profile S, G, T), SDK
• Mobile preview on smartphone ( iOS,Android)
• Free in Polish for registration on your computer

Purpose

The camera is designed for outdoor applications. The housing allows you to mount the camera both on the ceiling and on the wall. The camera will be used in monitoring: parking lot, playground, hall, square, state institutions, schools, etc.

Description

The Kenik IP camera is ideal for surveillance systems that require the highest image quality. The 4MPX transducer and advanced H.265+ compression ensure that many details are recognized both day and night. What’s more, the user can use intelligent image analysis to increase the security of the protected object. Many other functionalities i.e. ROI, hardware WDR makes sure that the image is as clear as possible, without distortion and allows you to identify people or objects. In addition, the camera can work in the cloud, and the connection is extremely simple. The user from anywhere in the world using his smartphone can check what is happening in the monitored facility. In addition, the Kenik camera uses Power over Ethernet (POE) power supply, so we do not have to lay two wires, because we only need a twisted pair to connect the cameras with other devices in the network.

Active deterrence

Active deterrence is a new technology that has been used in Kenik cameras. The built-in siren and flashing blue and red light LEDs indicate the detection of an object in the zone observed by the camera. The technology also enables two-way audio communication.

SMD and Perimeter Protection 2.0

What are the differences in SMD + P.P 2.0 compared to standard image analysis :

▪ The detection accuracy (human and vehicle) is up to 99%.

▪ Small animals (cats, dogs) < 0,5%

▪ Large animals (cattle, horses, sheep) < 1%

▪ Human detection range is up to 30 meters per day

(The range at night will be smaller depending on the scene)

▪ Vehicle detection range is up to 50 meters

(Camera with fixed focusing 2,8 mm)

Based on the circuit protection function, the alarm is triggered only in the case of human or vehicle movement, which can save users the trouble of unwanted alarms.

Intelligent Image Analysis (IVS)

A big advantage of the camera is the support for intelligent video analysis. Event detection was used in the case of: line crossing, intruder detection, entry into the area, leaving the area (SMD + P.P. human/vehicle), scene change detection, face detection. This increases the effectiveness of the monitoring system and the safety of the controlled facility.

Onvif

Onvif (Open Network Video Interface Forum) is an organization of CCTV manufacturers focused on the issue of standardization, a common protocol for these devices. This group was created to unify the protocol, i.e. the way of communication between devices of different suppliers. At present, the entire organization brings together about 450 companies and institutions from around the world.

Since its introduction, the Onvif standard itself has undergone successive stages of development and encountered various unexpected problems. It happened that two different devices with the implemented protocol did not work or their functionality was limited. Today, the standard is offered in version 2.6 and in the vast majority of cases allows for seamless integration of any devices.

Kenik Mobile preview

Thanks to the free Kenik Mobile application, we have the ability to remotely view the image from the camera on your mobile phone. Just download it from the app store. It supports such systems as: Android, iOS. This gives us the ability to control what is happening in the monitored facility from anywhere in the world. When connected in the cloud, simply enter the camera ID number and enjoy remote access to your device.

Working in the cloud Kenik

Each Kenik IP camera has the ability to connect via the cloud. Thanks to this solution, without complicated configuration, every user can easily connect to the camera and see the image. It is not necessary to redirect ports or a public IP address, just connect to the Internet (including LTE) and create an account on KENIKP2P (www.kenikp2p.com). The service is free.

VMS Pro software

VMS Pro is software that allows you to preview the image and manage the DVR on your computer. It allows you to connect several recorders located in different locations and preview the image from up to 128 cameras. In addition, creating an e-map makes it easier to browse and allows you to divide the system into zones. Support for up to 4 monitors at the same time will certainly help.

WDR

The WDR function allows you to get an image with even brightness in each part of the frame. It is necessary in places with very large differences in lighting levels in different areas. Cameras with WDR will be particularly used in entrances to buildings, glazed walls, etc.

SD card reader

The camera allows you to record video on a memory card based on a set schedule or motion detection. The reader supports cards up to 128GB. This allows the camera to operate autonomously without the use of a recorder or create an emergency backup.

Technical Specifications:

Image Sensor:

• 1/2.7" Progressive Scan CMOS Sensor

Sensitivity:

• 0.003 lux (color), 0 lux (IR on)

Shutter Speed:

• Auto/Manual, 1/3~1/10000s

Lens:

• 2.8 mm, F1.0 Horizontal Field of View: 103°

Lens Mount:

• M12

Day/Night:

• Auto

WDR (Wide Dynamic Range):

• 120 dB

Noise Reduction:

• 2/3D DNR

IR Illuminator Range:

• 30M (IR) / 30M (White Light)

Smart IR:

• Yes

Microphone:

• Yes

Speaker:

• Yes

MicroSD Card Slot:

• Yes, up to 256 GB

NAS (Network Attached Storage):

• NAS (NFS, SMB/CIFS), ANR

Audio Input/Output:

• 1/1

Alarm Input/Output:

• 1/1

Image Rotation:

• Yes

Reset Button:

• Yes

Red/Blue Lights:

• Yes

Audible Alarm:

• Yes

Video Compression:

• H.264/H.264+/H.265/H.265+

H.264 Codec Profile:

• Baseline/Main/High Profile

H.265 Codec Profile:

• Main Profile

Audio Compression:

• G.711A/G.711U

Video Bitrate:

• 11 Kbps~10Mbps

Audio Bitrate:

• 64 Kbps

Max. Resolution:

• 5MP (2880x1620)

Frame Rate, Main Stream:

• 50Hz: 25 fps 5MP (2880x1620), 25 fps 4MP (2560 x 1440), 25 fps 1080P (1920 x 1080), 60Hz: 30 fps 4MP (2688 x 1520), 30 fps 4MP (2560 x 1440), 30 fps 1080P (1920 x 1080)

, Sub Stream:

• 50Hz: 25 fps 720P (1280 x 720) 25 fps D1 (704 × 576), 25fps CIF (352 x 288) 60Hz: 30 fps 720P (1280 x 720) 30 fps D1 (704 × 480), 30 fps CIF (352 x 240)

, Third Stream:

• 50Hz: 25 fps CIF (352 x 288) 60Hz: 30 fps CIF (352 x 240)

Image Settings:

• Brightness/Contrast/Saturation/Hue/Sharpness

BLC (Backlight Compensation):

• Yes

HLC (Highlight Compensation):

• Yes

ROI (Region of Interest):

• Yes

Events:

• Motion detection (human/vehicle object classification), video tampering

Smart Image Analysis:

• Line crossing detection, intrusion detection, alarm triggering by specific targets - human/vehicle (SMD + P.P), face detection

Protocols:

• TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,IGMP,UPnP,SMTP,UPnP-TM,P2P

Supported Standards:

• Onvif (Profile S, G, T), SDK

Security:

• User authentication, IP address filtering, video masking

Mobile Viewing:

• iOS, Android

Web Browser:

• IE, Chrome, Firefox

Security:

• Password protection, complex password, HTTPS encryption, IP address filter, Basic and Digest Authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and Digest Authentication for Open Network Video Interface

Communication Interface:

• 1x RJ45 10M/100M Ethernet Port

Operating Conditions:

• -40°C ~ 60°C (-40°F ~ 140°F) Humidity 95% or less (non-condensing)

Power Supply:

• DC12V ± 25%

PoE (Power over Ethernet):

• PoE (802.3af)

Power Consumption:

• Max. 8.4W

IP Rating:

• IP67

Dimensions:

• Φ 103.7 × 279.8 mm

Material:

• Metal

Weight:

• 1240g
