IP vaizdo kamera Ipox PX-DI4036IR3DL/W, 4 Mpx

Trumpai apie prekę

Prekė: IP vaizdo kamera Ipox PX-DI4036IR3DL/W, 4 Mpx. Kategorija: IP kameros.

• Gamintojas: IPOX
• Modelis: 6168W/3.6

Description

Note, the camera requires password activation the first time you start.

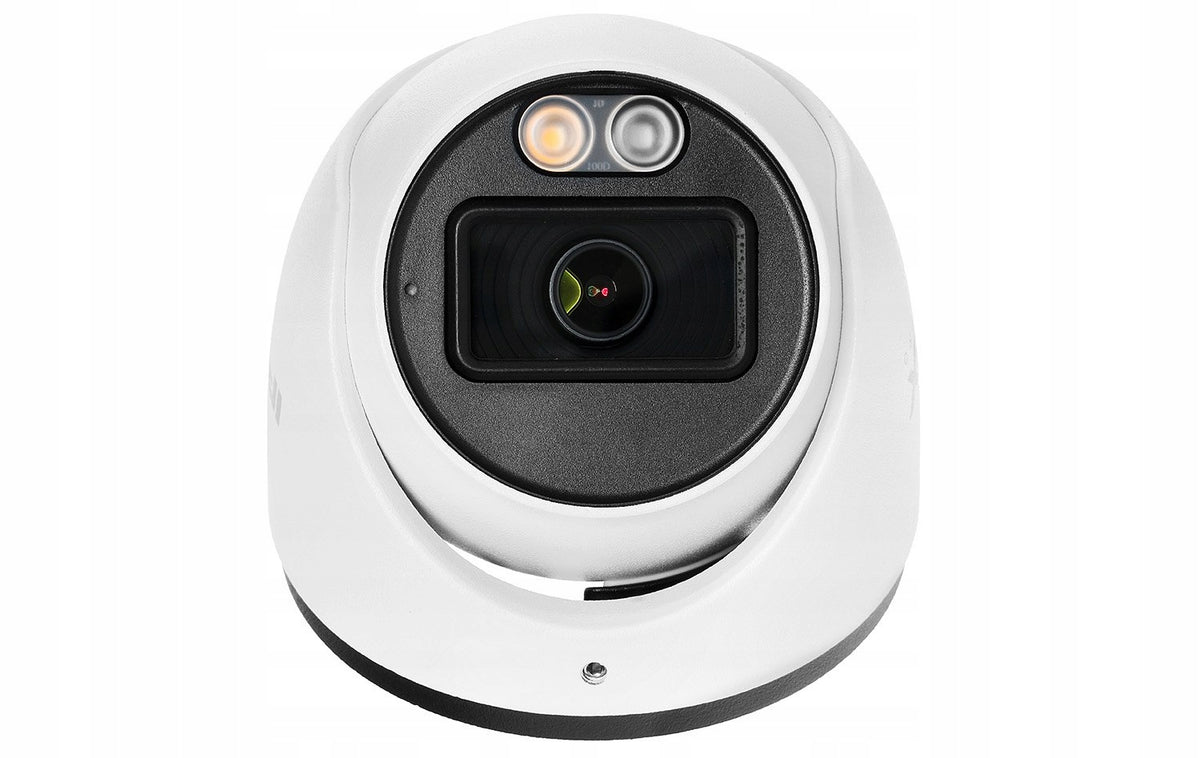

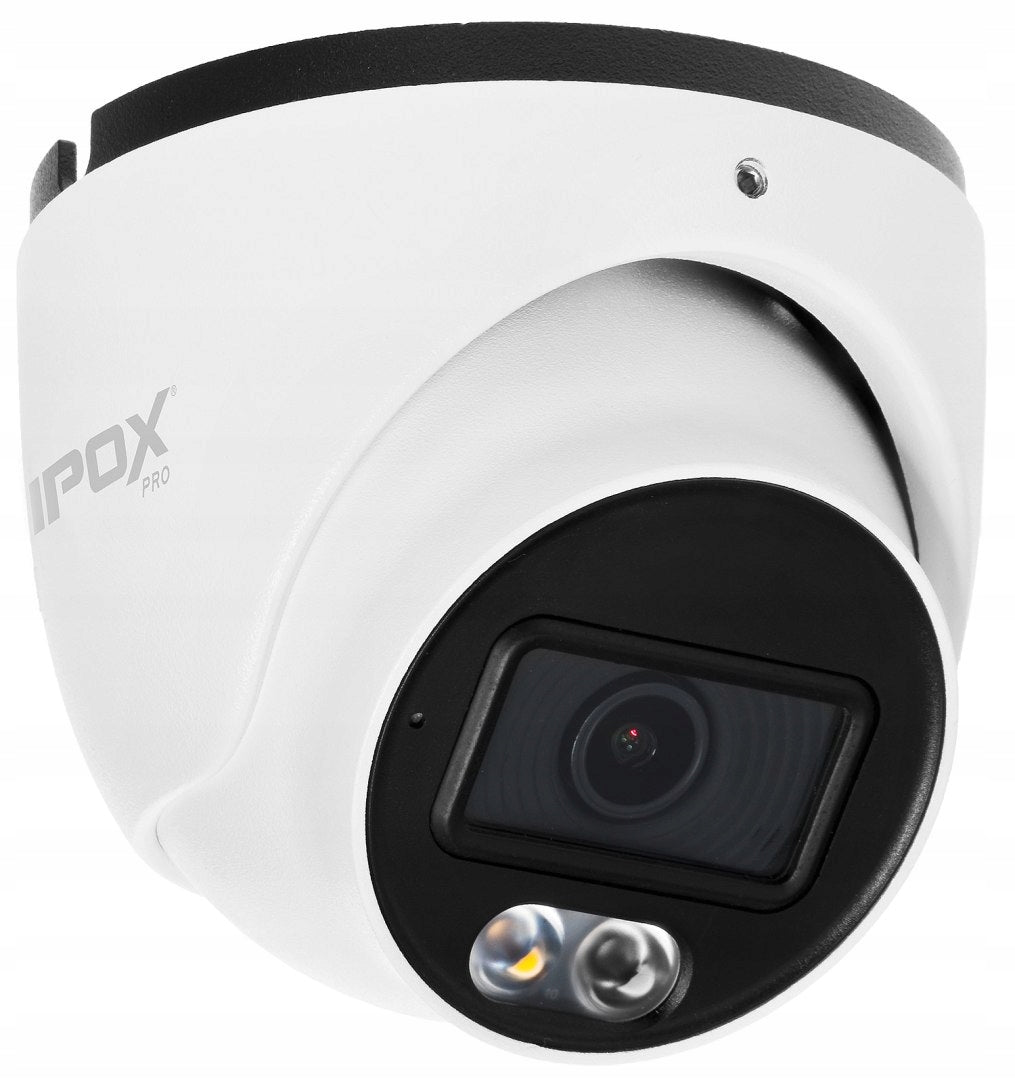

PX-DI4036IR3DL is a turret camera by IPOX working in the double illuminator technology. Dual Light. In practice, the use of two types of LEDs in the camera - IR with infrared light and LED with warm white light allows you to obtain a traditional black and white image or color image at night. The device uses the CMOS transducer in the image capture process, which allows you to capture recordings in a resolution of 2560×1440 (4Mpx). The fixed focal length lens used in the device allows for quick adaptation of the camera without the need for additional interference from the user. The camera is equipped with basic AI functions that allow to identify a human / vehicle after crossing a line or violating a zone.

• Functional menu
• Smart Dual Light - decide how to illuminate at night
• 24/7 color image
• AI functions in IPOX cameras
• Peripheral protection
• Detection of left and missing objects
• Digital Noise Cancellation - DNR
• Wide dynamic range - WDR
• Area of increased interest - RoI
• Masking of light sources - HLC
• Corridor function
• Masks of privacy
• Motion detection system

• Notifications from alarm events
• Camera with PoE technology
• Secure data transfer with encrypted HTTPS connection
• Modern data transfer with RTMP protocol
• H.265 compression
• microSD card support, built-in microphone
• Resistant, durable housing
• NVMS program
• IPOX PRO application
• Fast start-up of the IP system

Specification

MAIN

• Converter: 1/3" 4MP Progressive Scan CMOS
• Resolution:4Mpx, 2560 × 1440 pixels
• Tenderness:
• 0.005 lux @ F1.6 (AGC ON)
• 0 lux @ IR LED ON
• Lens: 3.6 mm @ F1.6
• Viewing angle: Horizontal: 78°; vertical: 40°; diagonal: 97°
• Snapshot: 1 ~ 1/100 000 s (automatic / manual)
• Adjustment range: Panorama (pan): 0° ~ 360°; slope (tilt): 0° ~ 75°; rotation: 0° ~ 360°

DORI

• Detection (25 px/m): 79 m
• Observation (63 px/m): 32 m
• Recognition (125 px/m): 16 m
• Identification (250 px/m): 8 m

Illuminator

• LED Type:
• IR (Infrared)
• LED (White Light)
• Number of LEDs:
• 1x IR LED
• 1x LED
• Range: 20 ~ 30 m
• Smart IR: Yes
• Automatic Exposure Control: Yes
• White Light Brightness Adjustment: 1 ~ 100

Illuminator Settings*

3 Operating Modes for the illuminator (IR only, LED only, Smart - IR + LED)

1. LED (Visible, White Light) - The illuminator stays off during the day and automatically turns on after dark. This mode provides a color image at night.

2. IR (Invisible, Infrared Light) - After dark, the camera uses infrared to illuminate the image. The image is color during the day and black and white at night.

3. Smart IR + LED (Default) - This mode combines both types of illuminators. After dark, the camera illuminates with infrared, and only when a person is detected in the image does it turn on the white light and switch to color mode.

*To change the illuminator mode, go to Settings -> Stream -> Display -> Illumination Type in the settings menu and select the desired option.


• System: PAL (50 Hz) / NTSC (60 Hz)
• Video Compression:
• Main Stream: H.265+ / H.265 / H.264+ / H.264
• Sub Stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG
• Extra Stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG
• Processing Resolution: 2560×1440 (4Mpx) / 2304×1296 (3Mpx) / 1920×1080 (2Mpx) / 1280×720 (1Mpx) / 704×576 (D1) / 640×480 (VGA) / 480×240 / 352×288 (CIF)
• Processing Speed and Resolution
• (Main Stream):
• 50 Hz: 1 ~ 25 fps @ 4Mpx / 3Mpx / 1080p / 720p
• 60 Hz: 1 ~ 30 fps @ 4Mpx / 3Mpx / 1080p / 720p
• Processing Speed and Resolution
• (Sub Stream):
• 50 Hz: 1 ~ 25 fps @ 720p / D1 / VGA / CIF
• 60 Hz: 1 ~ 30 fps @ 720p / D1 / VGA / CIF
• Processing Speed and Resolution
• (Extra Stream):
• 50 Hz: 1 ~ 25 fps @ D1 / 480×240 / CIF
• 60 Hz: 1 ~ 30 fps @ D1 / 480×240 / CIF
• Bitrate: 64 Kbps ~ 6 Mbps
• Saving Snapshots to Memory Card*:

*Note: The camera does not have a built-in battery. For the SD card recording function to work correctly, the camera must have internet access / NTP server connection, or be connected to an NVR for time synchronization.

• Snapshot Download: From any stream
• Settings: AWB (Manual 0 ~ 100), AGC (Manual 0 ~ 100), BLC, HLC, MIR, FLIP, 2D/3D DNR, WDR 120 dB, ROI, Corridor Mode (90° / 180° / 270°)
• Adjustment: Saturation, Brightness, Contrast, Hue, Sharpness, Noise Reduction
• Flicker Filter: 60 Hz / 50 Hz
• Day/Night Mode: 3 profiles (Auto, Manual, Schedule), 3 sensitivity levels, transition delay 2 ~ 120 s
• Video Settings Configuration: 3 profiles (Day, Night, Universal) with scheduling options

AUDIO (DISABLED BY DEFAULT)

• Compression: G.711A, G.711U
• Built-in microphone: Yes
• Microphone volume level: 0 ~ 100
• Audio input volume level: 0 ~ 100
• RTMP:
• Sampling frequency: 8000 Hz
• Sampling: 16 bits
• Sound: mono

CONNECTORS

• Ethernet: 1x RJ-45 10Base-T/100Base-TX
• Audio: 1x input (jack 3.5)
• Memory slot: 1x microSD/ microSDHC/ microSDXC slot up to 256 GB
• Power supply: 1x 5,5/2,1 socket on cable
• Reset button: 1x

FUNCTIONS

• Protocol support:Onvif Profile S (23.06)
• Integration: API
• Menu languages: English, Chinese, Simplified Chinese, Czech, French, Hebrew, Spanish, Spanish (Latin America), Japanese, Dutch, German, Norwegian, Polish, Portuguese, Russian, Romanian, Turkish, Hungarian, Italian
• OSD:Date, camera name, watermark, ability to set your own text (1 line, 15 characters)
• Online Users: Max. 3 connections
• Login lock: Yes, after 6 failed attempts
• Password protection: 3 difficulty levels and the ability to set the time after which you need to change the password to a new one (from 30 days to never)
• Possibility to disconnect the connection: Yes, from the administrator
• Address filtering: IP, MAC
• Notifications: IP address change, incorrect login, motion detection, sabotage, object protection, line crossing, intrusion detection (zone violations)
• Alarm sustain time from video events: 1 s / 3 s / 5 s / 10 s / 20 s / 30 s / 60 s / 2 min
• System Alarms: Filled microSD card, microSD card error
• Motion Detection: Any number of zones, adjustable sensitivity 1~8, action schedule
• Motion detection fields: 396 (22×18)
• Privacy Zones: 4 zones
• ROI: 3 areas (level 1~10)
• Prevention: Automatic / manual restart

MANAGEMENT

• Browsers (Windows/macOS/Linux): Edge, Safari, Opera, Chrome, Firefox, etc. - plug-in interface (main stream preview max. 1080p), Internet Explorer - requires plugin installation
• CMS (Windows/macOS): NVMS 2.0
• Mobile devices (Android / Ios): IPOX PRO

• Basic: Object protection (detection of left/taken objects; 1 area), motion detection, exception (network disconnection, IP address conflict, illegal login, full microSD card, microSD card error), sabotage (detection of change: scene, color, blur)

• Motion detection: Motion detection based on object recognition (human/vehicle)
• Perimeter protection (perimeter): Line crossing detection (4 lines), intrusion detection (4 zones) - all based on object recognition (human/vehicle)
• Filtering false alarms:
• Target size filter for perimeter protection set separately for people and vehicles (min. width / height 1%; max. width / height 90%). Filter values are set the same for all active zones/lines

*Attention! The filter function is available separately for motion detection and only for one perimeter protection analysis function (enabling one will disable the other)

OTHER

• Compliant with NDAA: Yes
• Protection class: IP67
• Mechanical resistance: IK10
• Power Supply:12 V DC or PoE 802.3af
• Power consumption: < 6 W with illuminator on< /li>
• Moisture: < 95% (non-condensing)< /li>
• Working temperature: -30°C ~ +60°C
• Weight: approx. 450 g
• Dimensions (dia. /H ): ø94,6×82,8 mm

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	EAN (GTIN)	5904194159177
Parametry	Manufacturer code	6168W/3.6
Parametry	Brand	IPOX
Parametry	Model	6168W/3.6
Parametry	Packaging status	original
Parametry	Batteries included	no
