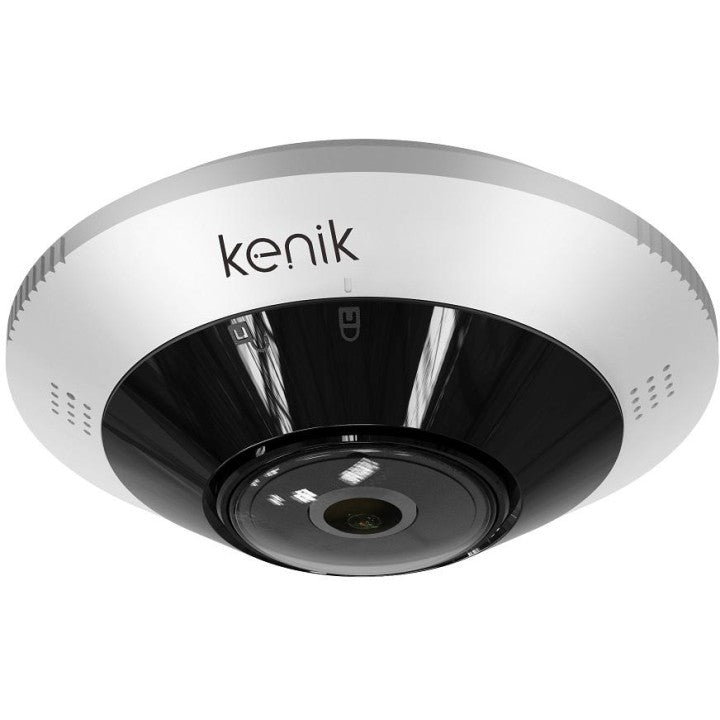

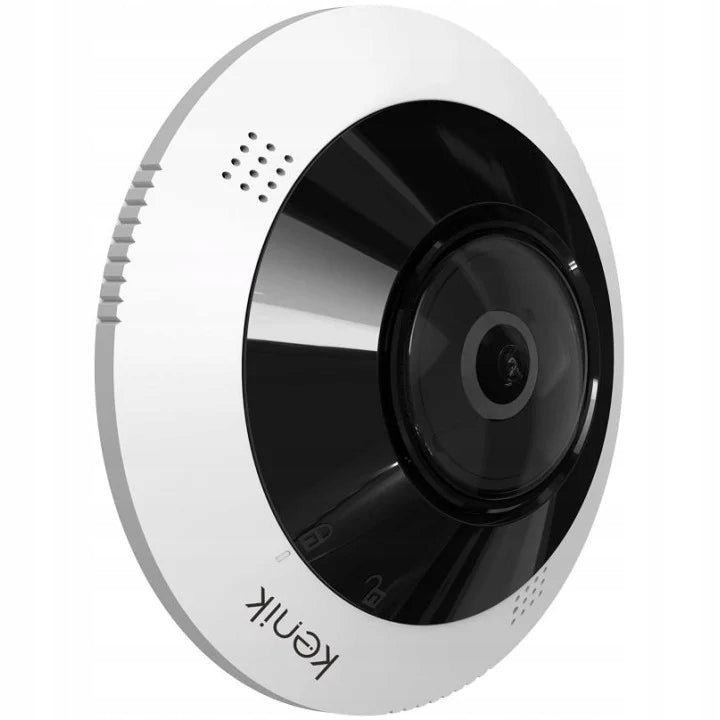

IP kamera KENIK KG-6020FAS

Trumpai apie prekę

Prekė: IP kamera KENIK KG-6020FAS. Kategorija: IP kameros.

• Gamintojas: KENIK
• Modelis: KG-6020FAS

CAMERA IP KENIK KG-6020FAS

CAMERA IP KENIK KG-6020FAS

Key features:

• 6MPX CMOS sensor
• H.265+/H.264+ compression
• WDR (120dB), day/night (ICR), 3DNR, AWB, AGC, BLC
• 1.68mm Lens
• Smart IR headlamp up to 20m
• MicroSD card reader up to 256GB
• Intelligent IVS image analysis (detection of an intruder in the area, line crossing)
• Defog function, ROI
• Record directly to the NAS
• Emergency Input/Output
• Audio Input/Output
• Built-in microphone and speaker
• Dual power supply 12V DC/PoE (802.3af)
• Enclosure with IP66 protection class
• Shade resistance class IK10
• Supports ONVIF 2.6 standard
• Mobile preview on smartphone (Android, iPhone)
• Free in Polish for registration on your computer

Purpose

Full surveillance thanks to the extremely wide field of view of 180 or 360º excluding the occurrence of blind spots while low cost of large-scale surveillance. The cameras are also optionally equipped with intelligent video functions: line crossing, intruder intrusion. They will find their purpose in monitoring: - Banquet halls - Conference rooms - Production halls - Warehouse halls - large-area supermarkets

Description

The Kenik type FISHEYE IP camera is ideal for surveillance systems requiring the highest image quality. The 6MPX transducer and advanced H.265+ compression ensure that many details are recognized both day and night. Modern infrared reflector with SMD LEDs ensures that the area is fully illuminated in the prevailing total darkness of the environment. What’s more, the user can use intelligent image analysis to increase the security of the protected object. Many other functionalities i.e. DEFOG, ROI, hardware WDR ensures that the image is as clear as possible, without distortion and allows you to identify people or objects. In addition, the camera can work in the cloud, and the connection is extremely simple. The user from anywhere in the world using his smartphone can check what is happening in the monitored facility. In addition, the Kenik camera uses Power over Ethernet (POE) power supply, so we do not have to lay two wires, because we only need a twisted pair to connect the cameras with other devices in the network. A big advantage is certainly also the support for NAS servers and the ability to directly record video on a network drive.

Onvif

Onvif (Open Network Video Interface Forum) is an organization of CCTV manufacturers focused on the issue of standardization, a common protocol for these devices. This group was created to unify the protocol, i.e. the way of communication between devices of different suppliers. At present, the entire organization brings together about 450 companies and institutions from around the world.

Since its introduction, the Onvif standard itself has undergone successive stages of development and encountered various unexpected problems. It happened that two different devices with the implemented protocol did not work or their functionality was limited. Today, the standard is offered in version 2.6 and in the vast majority of cases allows for seamless integration of any devices.

Intelligent Image Analysis (IVS)

A big advantage of the camera is the support for intelligent video analysis. Event detection was used in the case of: detection of an intruder in the area, crossing the line, fast moving object, entering the area, leaving the area and face detection. This increases the effectiveness of the monitoring system and the safety of the controlled facility.

Working in the cloud Kenik

Each Kenik IP camera has the ability to connect via the cloud. Thanks to this solution, without complicated configuration, every user can easily connect to the camera and see the image. The service is free.

Smart IR Headlamp

The Kenik camera uses a modern infrared reflector based on IR diodes for visibility in complete darkness. It is characterized by lower energy consumption, as well as stronger and more even illumination compared to standard diodes. In addition, the Smart IR radiator does not cause overexposure of the image in places where the object is in close proximity to the camera.

WDR

The WDR function allows you to get an image with even brightness in each part of the frame. It is necessary in places with very large differences in lighting levels in different areas. Cameras with WDR will be particularly used in entrances to buildings, glazed walls, etc.

Motion detection

Motion detection is one of the functions of the camera that is responsible for recording the image. Detection is carried out on the principle of capturing changes in the image, and the recording of the selected channel is enabled. This function has a number of additional possibilities, including defining the detection field, adjusting the appropriate sensitivity of changes that are responsible for recording.

​

VMS Pro software

VMS Pro is software that allows you to preview the image and manage the DVR on your computer. It allows you to connect several recorders located in different locations and preview the image from up to 128 cameras. In addition, creating an e-map makes it easier to browse and allows you to divide the system into zones. Support for up to 4 monitors at the same time will certainly help.

​

Recording on the card

The camera allows you to record material on the memory card based on the schedule, as well as on the motion detection signal coming from the camera image.

KG-6020FASKameraConverter1/2.5" Progressive Scan CMOS SensorSensitivity0.008 lux (colour), 0 Lux (IR on )Illuminator Range20m ( IR )StrobeLightNoSmart IRYesLens1.68mm@F2.0, 180°DORI1.68mm, D: 33 m, O: 13 m, R: 6.5 m, I: 3.3 mCompressionVideo CompressionH.264/H.264+/H.265/H.265+/MJPEGH.264 Codec ProfileBaseline/Main/HighH.265 Codec ProfileMainVideo Bitrate11 Kbps ~ 10MbpsAudio CompressionG.711A, G.711UBuAudio Bitrate64 KbpsImageMax. Resolution 6MP ( 2560 × 2560 ) Main Stream Fisheye 50HZ: 25fps ( 2560 × 2560, 1920 × 1920 ) 60HZ: 30fps ( 2560 × 2560, 1920 × 1920 ) Widescreen 50HZ: 15fps ( 1920 × 1080, 1280 × 720 ) 60HZ: 15fps ( 1920 × 1080, 1280 × 720 ) 4PTZ 50HZ: 15pfs ( 640 × 480 ) 60HZ: 15pfs ( 640 × 480 ) 480 )Fisheye + Panoramic + 3PTZ50HZ: 25fps ( 2560 × 2560 , 1920 × 1920 ) +30fps ( 1920 × 1080 ) + 30fps ( 640 × 480 ) *3 60HZ: 30fps ( 2560 × 2560 , 1920 × 1920 ) +30fps ( 1920 × 1080 ) + 30fps ( 640 × 480 ) *3Fisheye + 4PTZ50HZ: 25fps ( 2560 × 2560 , 1920 × 1920 ) + 25fps ( 640 × 480 ) *4 60HZ: 30fps ( 2560 × 2560 , 1920 × 1920 ) + 30fps ( 640 × 480 ) *4 Panoramic + 4PTZ 50HZ: 15fps ( 1920 × 1080 , 1280 × 720 ) + 15fps ( 640 × 480 ) *4 60HZ: 15fps ( 1920 × 1080 , 1280 × 720 ) + 15fps ( 640 × 480 ) *4 Substream Fisheye 50HZ: 25fps ( 960 × 960, 480 × 480 ) 60HZ: 30fps ( 960 × 960, 480 × 480 ) Panoramic 50HZ: 15fps ( 704 × 576, 352 × 288 ) 60HZ: 15fps ( 704 × 480 , 352 × 240 ) 4PTZ 50HZ: 15pfs ( 320 × 240 ) 60HZ: 15pfs ( 320 × 240 ) Fisheye + Panoramic + 3PTZ 50HZ: 25fps ( 960 × 960, 480 × 480 ) +25fps ( 704 × 576 ) + 25fps ( 320 × 240 ) *3 60HZ: 30fps ( 960 × 960, 480 × 480 ) +30fps ( 704 × 480 ) + 30fps ( 320 × 240 ) *3Fisheye + 4PTZ50HZ: 25fps ( 960 × 960, 480 × 480 ) + 25fps ( 320 × 240 ) *4 60HZ: 30fps ( 960 × 960, 480 × 480 ) + 30fps ( 320 × 240 ) *4 Widescreen +4PTZ50HZ: 15fps ( 704 × 576 , 352 × 288 ) + 15fps ( 320 × 240 ) *4 60HZ: 15fps ( 704 × 480 , 352 × 240 ) + 15fps ( 320 × 240 ) *4 Image Settings Brightness / Contrast / Saturation / Hue / Sharpness Iris Modes Auto / Manual, 1/3~1/100000s Day / Night IR cut filter WDR 120 dB Noise Reduction 3D DNR BLC Yes HLC Yes ROI Yes Events Basic Motion Detection, Image Occlusion Intelligent Video Analysis Line Crossing, Intrusion Detection, Region Entering, Region Leaving Network Storage NAS (NFS, SMB/CIFS) Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P Supported Standards Onvif (Profiles S, G, T), CGI, SDK Security Password protection, complex password, HTTPS encryption, IP address filter, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for open video network interfaces Max. Number of users: 40 Web: IE, Chrome, Firefox Mobile preview: Android, IOS Interfaces: Communication interface: 1 RJ45 10 M/100 M Memory card: up to 256 GB Microphone: Yes Speaker: Yes Audio I/O 1/1 Alarm I/O 1/1 Reset button: Yes General Operating conditions: (-40°C ~ 60°C) Power supply: DC12V ± 25% POE PoE (802.3 af) Power consumption: MAX. 9 W Protection class: IP66 Material: Metal Dimensions: Φ152 mm × 53 mm Weight: 724 g

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	EAN (GTIN)	5908231256409
Parametry	Manufacturer code	KG-6020FAS
Parametry	Brand	KENIK
Parametry	Model	KG-6020FAS
Parametry	Packaging status	original
